Engine Control System
›
ETC (Electronic Throttle Control) System
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

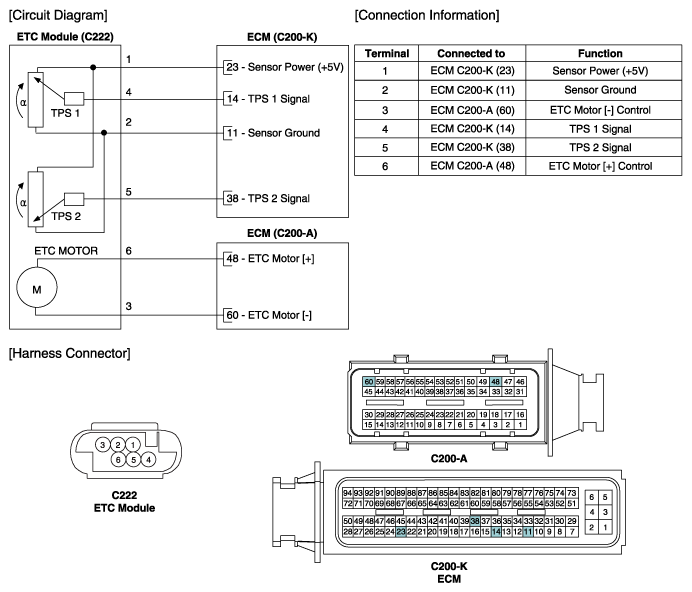

Fig 1: ETC (Electronic Throttle Control) System Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
