Heated Oxygen Sensor (HO2S)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

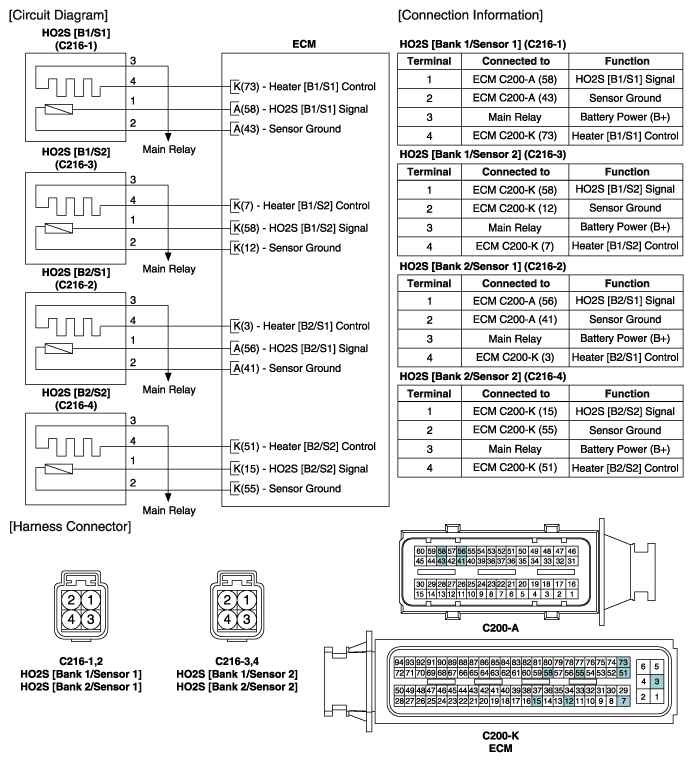

Fig 1: Heated Oxygen Sensor (HO2S) Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
