Rail Pressure Sensor (RPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

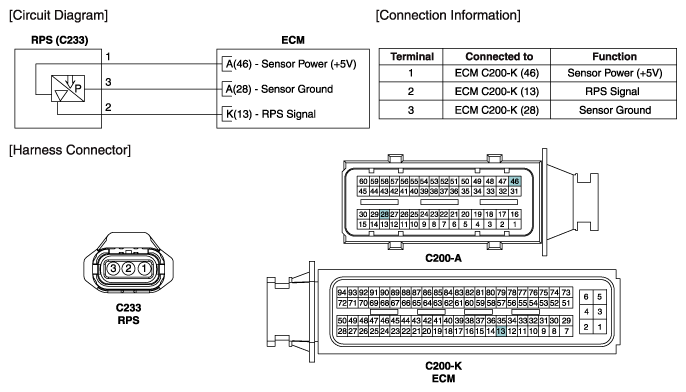

Fig 1: Rail Pressure Sensor (RPS) Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
