Fuel Pump Control Module (FPCM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

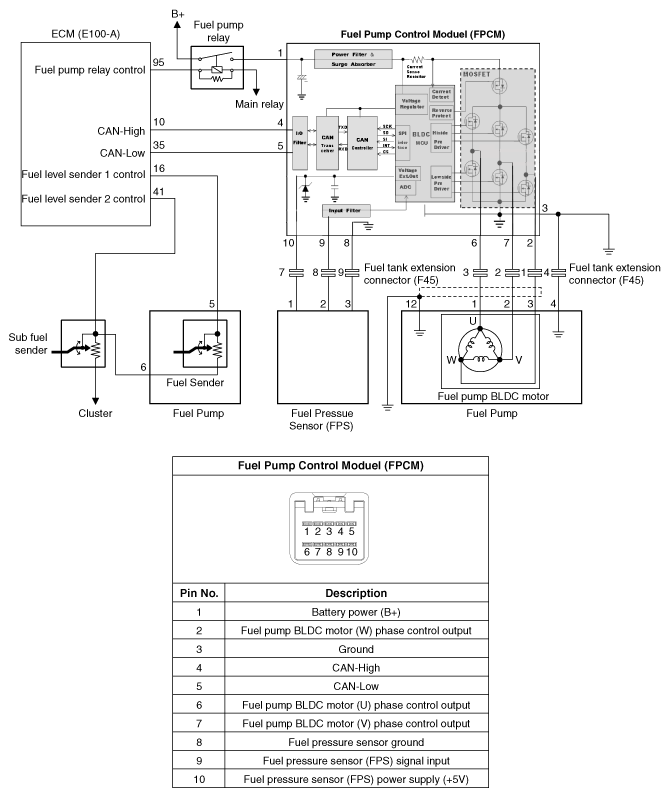

Fig 1: Fuel Pump Control Module Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
