Equus Signature
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transmission Control System
›
27 Brake Control Solenoid Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

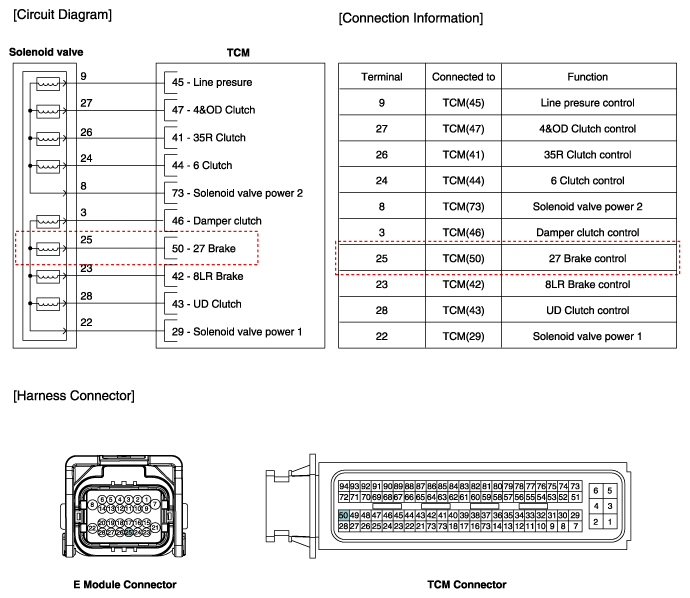

Fig 1: 27 Brake Control Solenoid Valve Circuit Diagram And Connector Terminal Identification
