Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transmission Control System
›
Inhibitor Switch
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

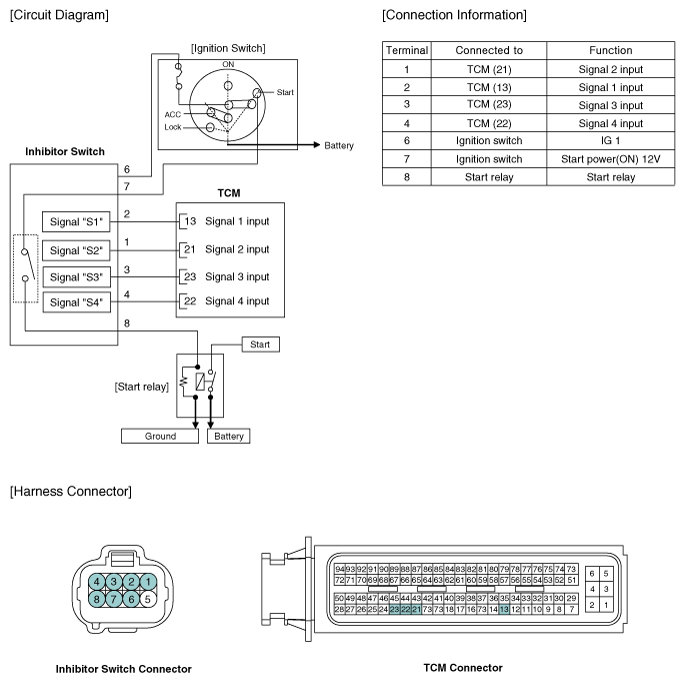

Fig 1: Inhibitor Switch Circuit Diagram And Connector Terminal Identification
