Automatic Transmission Control System
›
Line Pressure Control Solenoid Vale
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

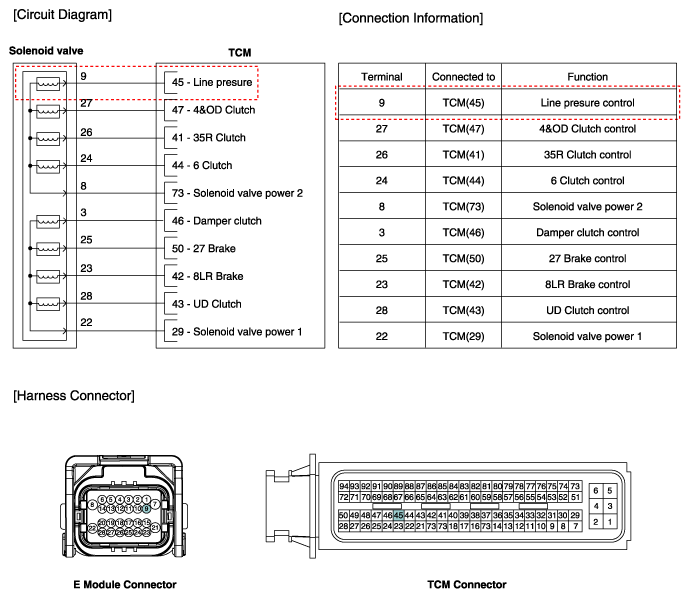

Fig 1: Line Pressure Control Solenoid Valve Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
