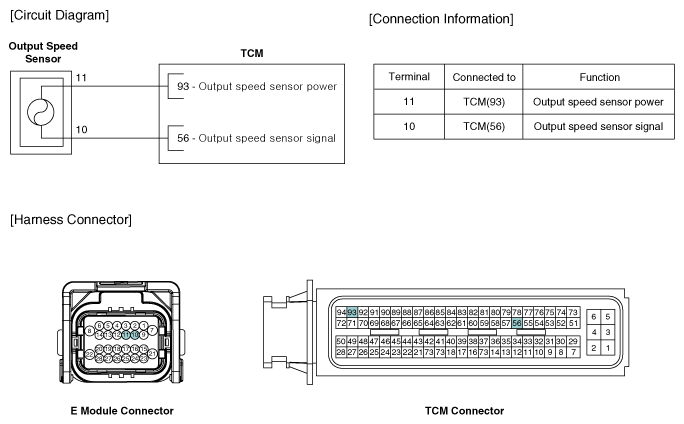

Home › Hyundai › 2016 › Equus Signature › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transmission Control System › Output Speed Sensor › Schematic Diagrams › Circuit Diagram
