Hyundai
›
2016
›
Equus Signature
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transmission Control System
›
Transmission Oil Temperature Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

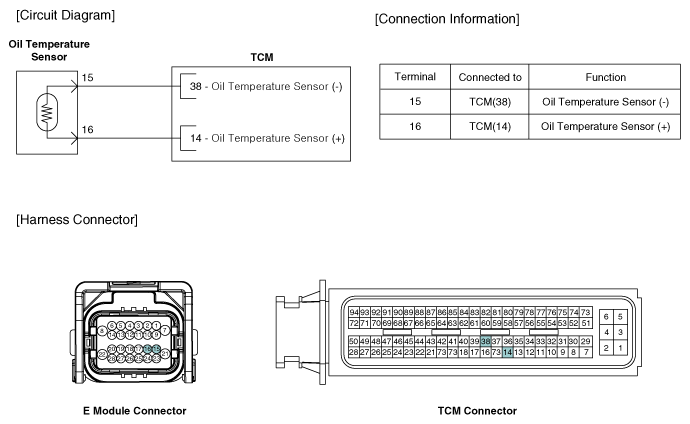

Fig 1: Transmission Oil Temperature Sensor Circuit Diagram And Connector Terminal Identification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
