Components and Components Location: Components

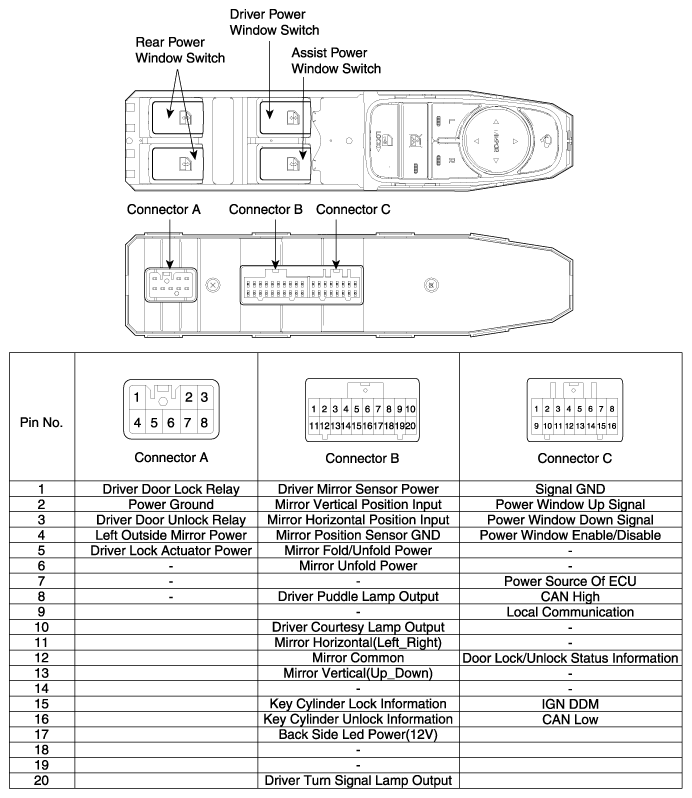

Fig 1: Power Mirror Switch Connectors Pins
G10387258Courtesy of HYUNDAI MOTOR AMERICA
