Genesis 3.8, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 3.8L
›
CVVT Oil Control Valve (OCV)
›
Troubleshooting
›
Signal Waveform
Signal Waveform

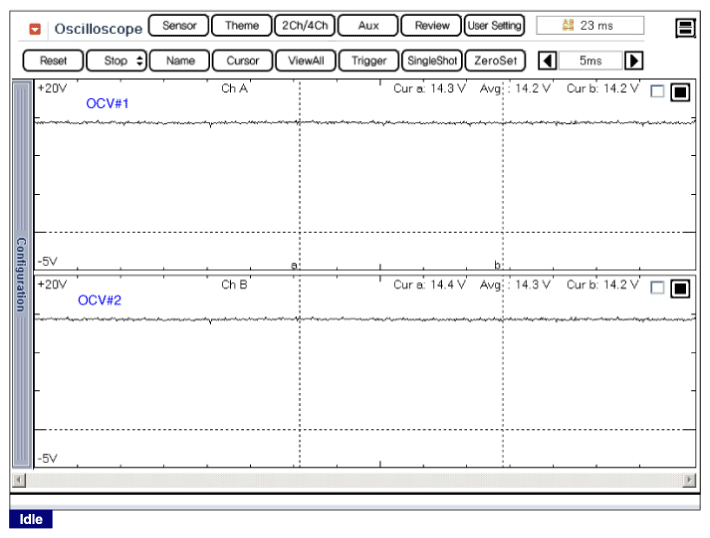

Fig 1: Oil Control Valve Voltage Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA

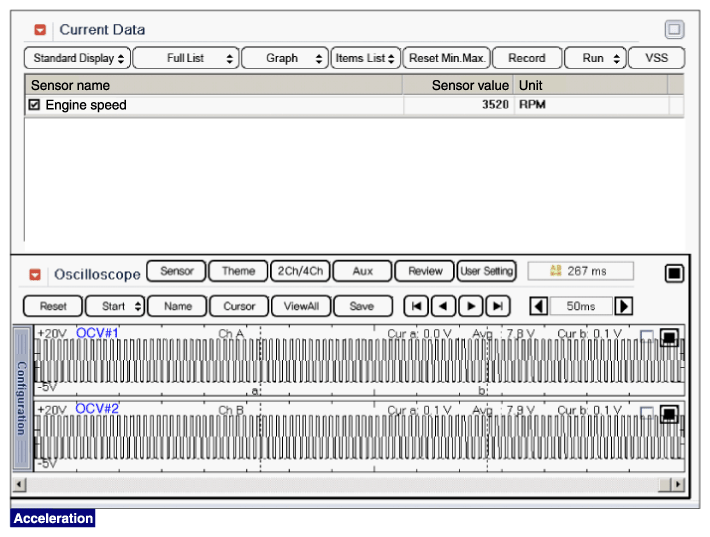

Fig 2: Oil Control Valve Voltage Signal Waveform (Acceleration)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
