Injector Drive Box (IDB)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

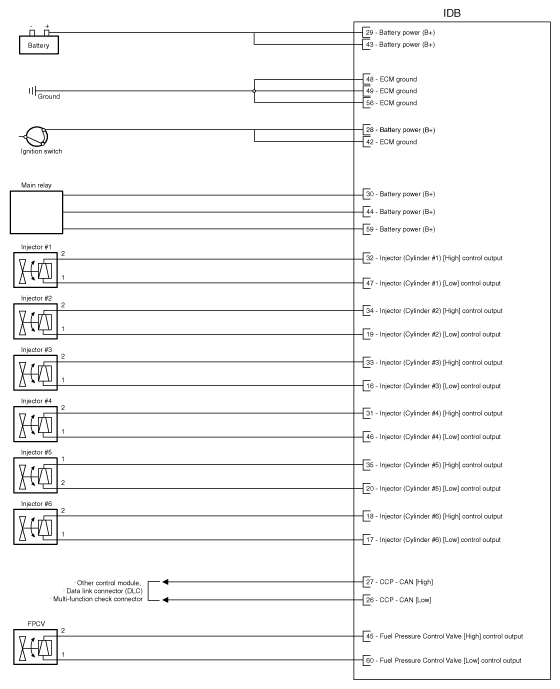

Fig 1: IDB Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: IDB Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
