Repair procedures: Removal

IG Key "ON".
Connect the GDS in the vehicle.
To read the transfer case data in old ITA (ECU), select "ECU Data Back-up & Writing" service of GDS.

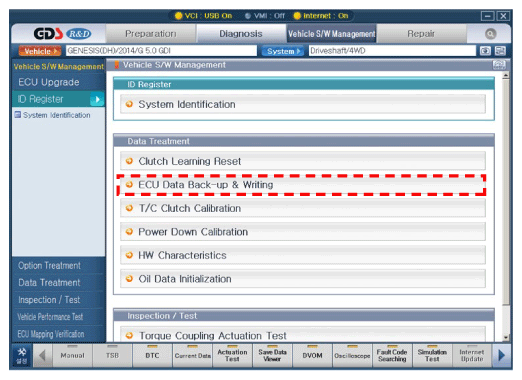

Fig 1: Display - Read Transfer Case Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
IG key "OFF".
Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER 3.8L or ENGINE ROOM UNDER COVER 5.0L ")
Disconnect ITA (ECU) connector (A).

Fig 2: ITA (ECU) Connector
Courtesy of HYUNDAI MOTOR AMERICA
Release 2 screws (A).
Remove the 4WD ITA (ECU) (B).

Fig 3: 4WD ITA (ECU) And Screws

Courtesy of HYUNDAI MOTOR AMERICA
