Repair procedures: Removal

CAUTION: In case of replacing the controller (ECU) and transfer case due to changing characteristics of the frictional materials inside the transfer case, it is necessary to check and enter the calibration data.

- The calibration procedure is not required in case of replacing the transfer case and ITA (ECU) at the same time.
- In case of replacing the transfer case assembly only, perform the clutch learning reset in the ITA (ECU).
(Refer to "REPAIR PROCEDURES ")
- In case of replacing the ITA (ECU) only, perform the clutch learning back-up and writing in the new transfer case ITA (ECU) using GDS equipment.
(Refer to "REPAIR PROCEDURES ")

CAUTION: Cautions in handling the transfer case

Preventing the ITA (Integrated Transfer case Actuator) from damage
1. In case of transporting the transfer case
  - Use caution when lifting the transfer case from the transporting package to make sure the ITA does not collide with the other transfer case.
  - Use caution for the ITA not to be impacted from contacting the floor or structure.
2. In case of assembling the transmission
  - Use caution for the ITA not to be impacted from contacting the transmission, floor or structure.

    Fig 1: Caution For ITA Not To Be Impacted From Contacting Transmission
    Courtesy of HYUNDAI MOTOR AMERICA

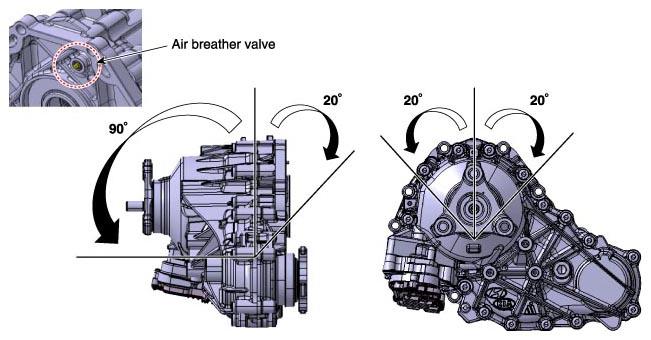

Preventing the oil leaking
- Even with the air breather valve installed, oil leaks from the collected oil during disassembling/assembling procedures in case of failure of keeping the horizontal position. Therefore, use caution when replacing the transmission.

  Fig 2: Caution For Replacing Transmission
  Courtesy of HYUNDAI MOTOR AMERICA

Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the front propeller shaft
(Refer to "PROPELLER SHAFT ASSEMBLY ")
Remove the rear propeller shaft
(Refer to "PROPELLER SHAFT ASSEMBLY ")
Remove the wiring (B) fixed on the transfer case after disassembling the transfer case (AWD) ECU connector (A).

Fig 3: Transfer Case (AWD) ECU Connector
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Transfer Case Wiring
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cross member (A) after supporting the transmission oil pan by the transmission jack.
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb.ft)

Fig 5: Transmission Cross Member
Courtesy of HYUNDAI MOTOR AMERICA
Unfasten the mounting bolt and remove the transfer case (AWD) (A).
Tightening torque:

29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb.ft)

Fig 6: Transfer Case (AWD) Assembly
Courtesy of HYUNDAI MOTOR AMERICA
