Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Power Trunk Module › Power Trunk Inner Switch › Components and Components Location › Component

Components and Components Location: Component

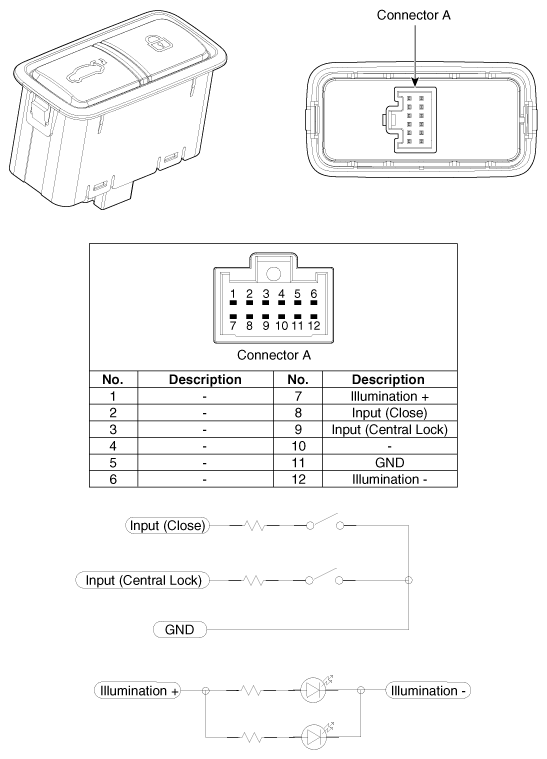

Fig 1: Power Trunk Inner Switch And Terminals
G10454527Courtesy of HYUNDAI MOTOR AMERICA
