Components and Components Location: Components

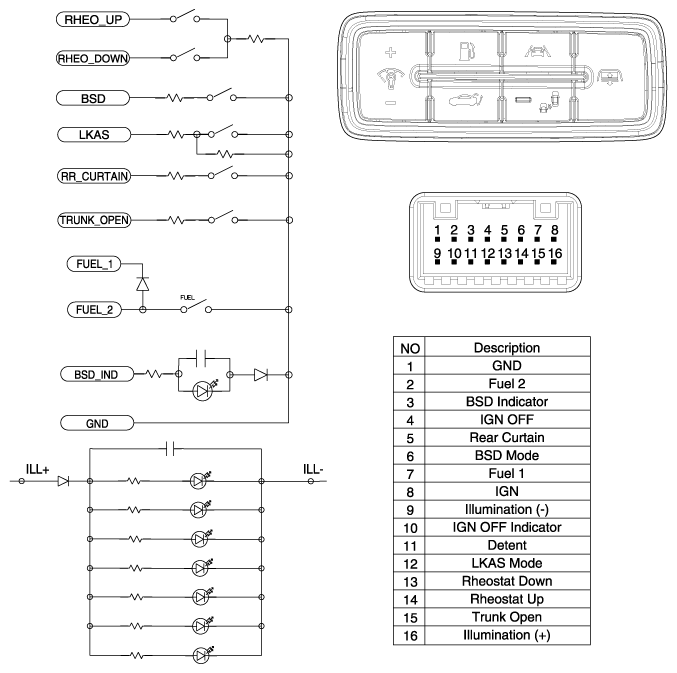

Fig 1: Power Trunk Open Close Switch, Terminals And Circuit Diagram
G10454531Courtesy of HYUNDAI MOTOR AMERICA
