Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Audio/Video/Navigation System › Front LCD monitor › Components and Components Location › Components

Components and Components Location: Components

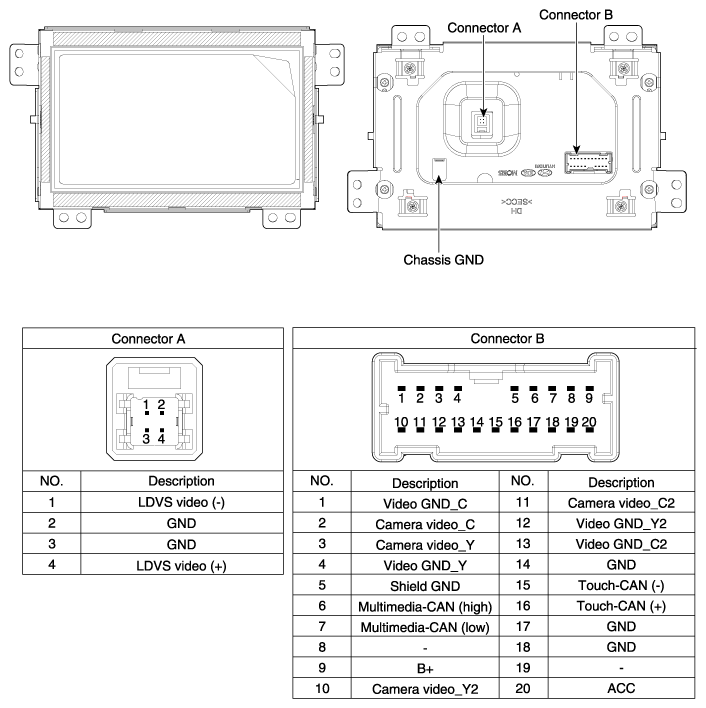

Fig 1: Front LCD Monitor Components And Terminals
G10454032Courtesy of HYUNDAI MOTOR AMERICA
