Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Premium Audio/Video/Navigation System › Center Control Panel (CCP) › Components and Components Location › Components

Components and Components Location: Components

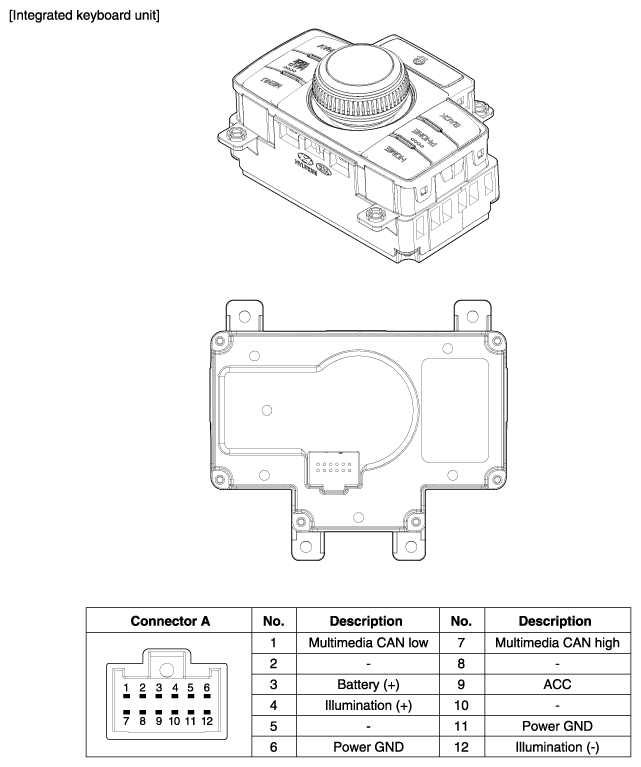

Fig 1: Center Control Panel Terminals
G10454100Courtesy of HYUNDAI MOTOR AMERICA
