Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Accessories & Equipment › Entertainment Systems › Premium Audio/Video/Navigation System › Front LCD monitor › Components and Components Location › Components

Components and Components Location: Components

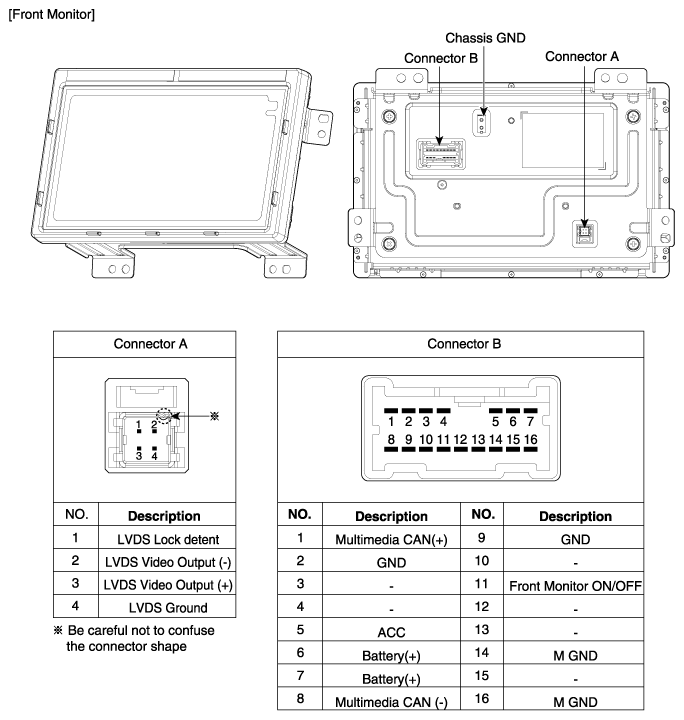

Fig 1: Front LCD Monitor Terminals
G10454096Courtesy of HYUNDAI MOTOR AMERICA
