Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Accessories & Equipment › Memory Modules › Integrated Memory System (IMS) › Memory power seat switch › Components and Components Location › Components

Components and Components Location: Components

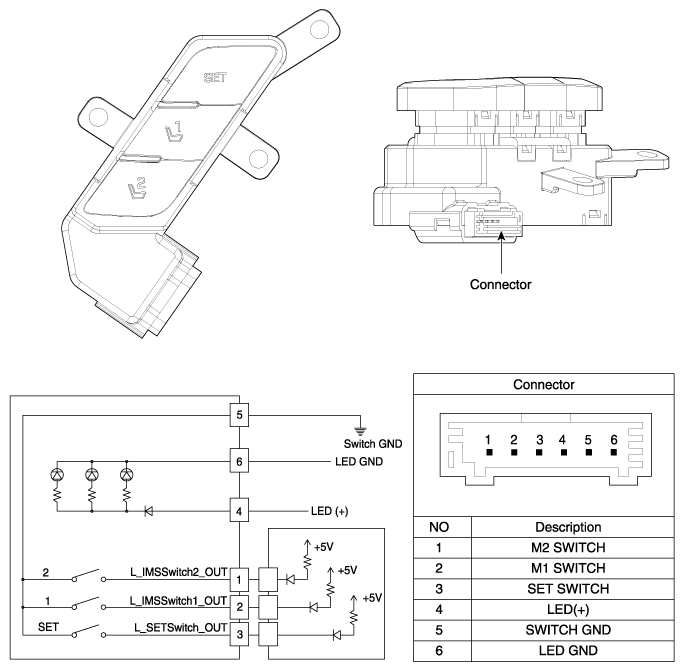

Fig 1: Memory Power Seat Switch And Terminals
G10454252Courtesy of HYUNDAI MOTOR AMERICA
