Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Body & Frame › Windows › Power Windows › Power Window Motor › Components and Components Location › Components

Components and Components Location: Components

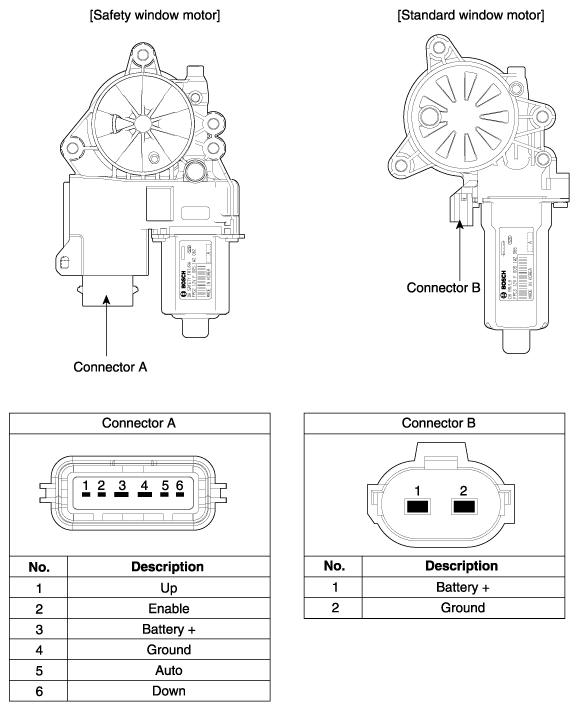

Fig 1: Power Window Motor Connectors
G10454455Courtesy of HYUNDAI MOTOR AMERICA
