Components and Components Location: Component

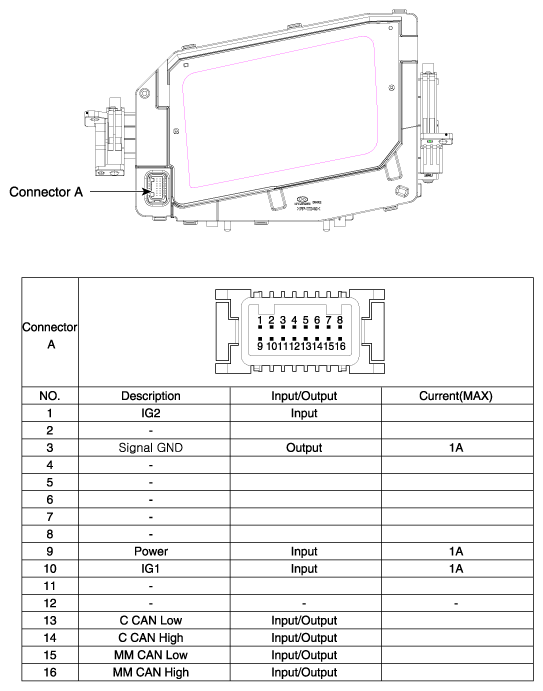

Fig 1: Head Up Display Unit Connector
G10454812Courtesy of HYUNDAI MOTOR AMERICA
