Components and Components Location: Component

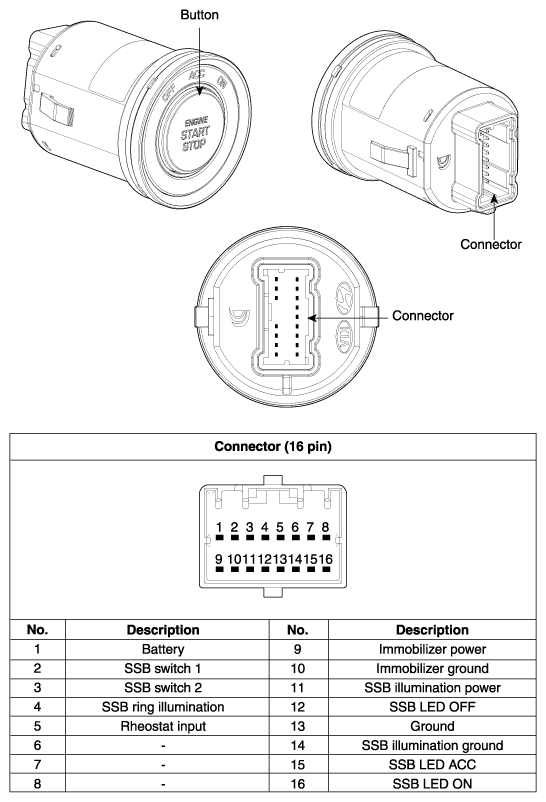

Fig 1: Start Stop Button And Terminals
G10454757Courtesy of HYUNDAI MOTOR AMERICA
