Components and Components Location: Components

[2WD]

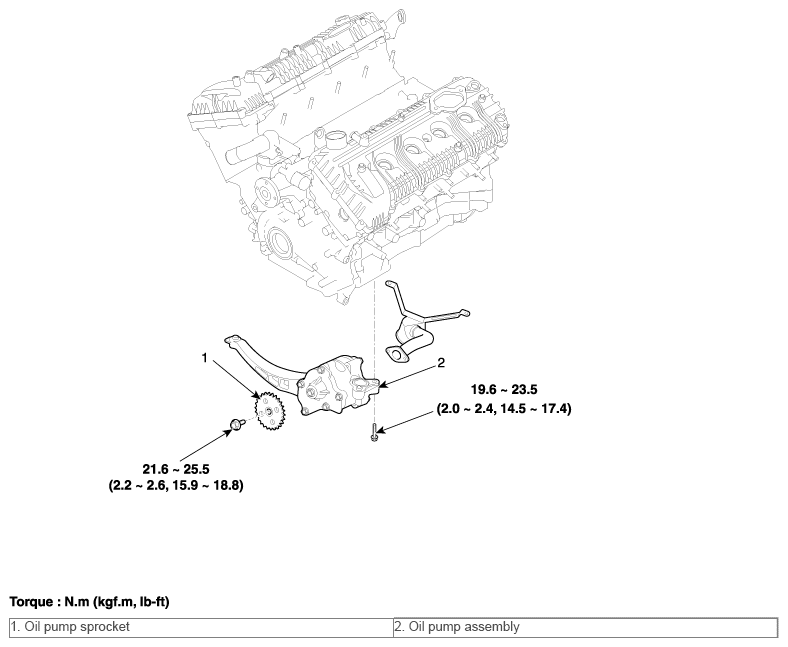

Fig 1: Oil Pump Components With Torque Specification (2WD)

Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

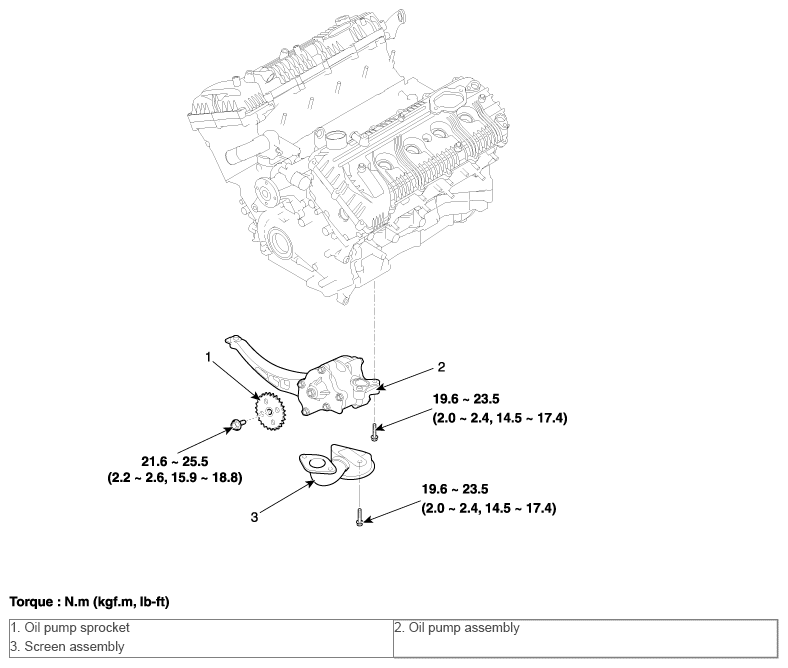

Fig 2: Oil Pump Components With Torque Specification (AWD)

Courtesy of HYUNDAI MOTOR AMERICA
