Components and Components Location: Components

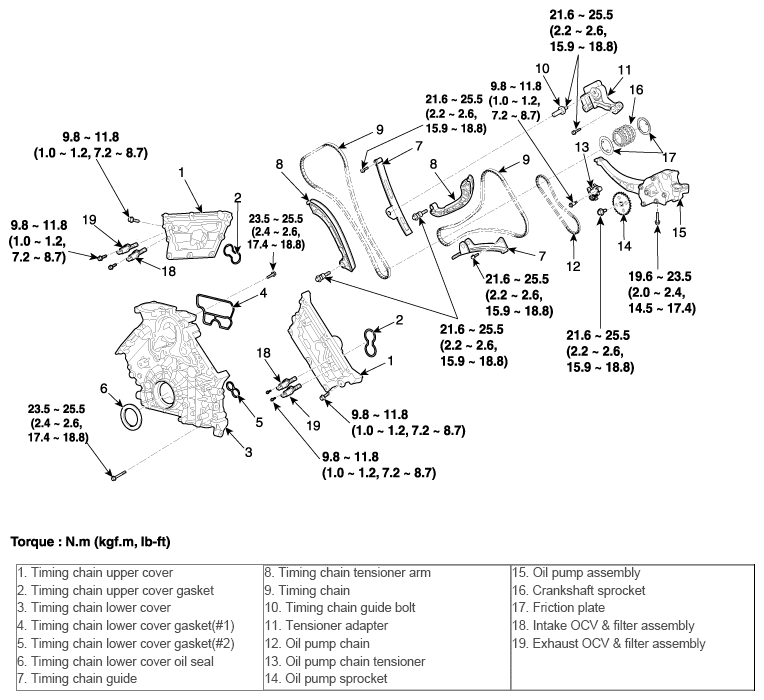

Fig 1: Timing System Components With Torque Specifications
G10464579Courtesy of HYUNDAI MOTOR AMERICA
