Components and Components Location: Components

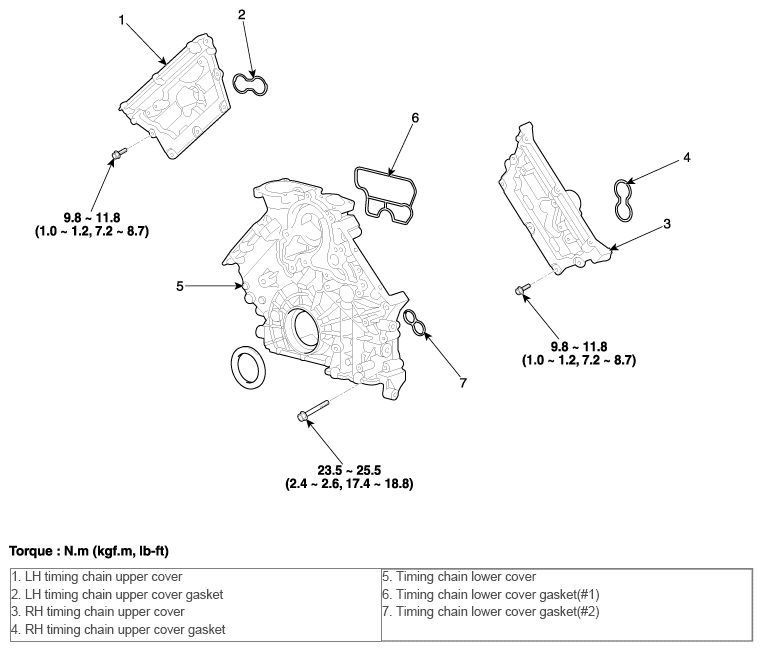

Fig 1: Timing Chain Cover Components With Torque Specifications
G10464591Courtesy of HYUNDAI MOTOR AMERICA
