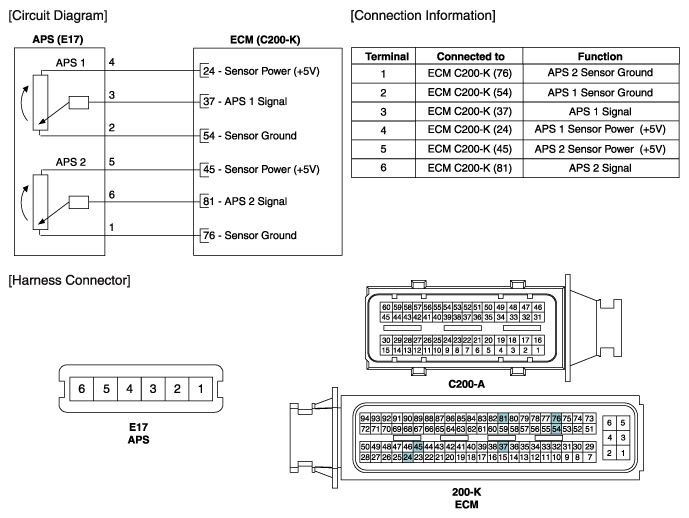

Home › Hyundai › 2016 › Genesis 5.0 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 5.0L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
