Fuel Delivery System - 5.0L: Troubleshooting

Fig 1: Fuel Delivery System Troubleshooting Chart (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

References for chart #1 above.

• Refer to DTC INDEX
• Refer to RELAY BOX (PASSENGER COMPARTMENT)
• Refer to FUEL PUMP

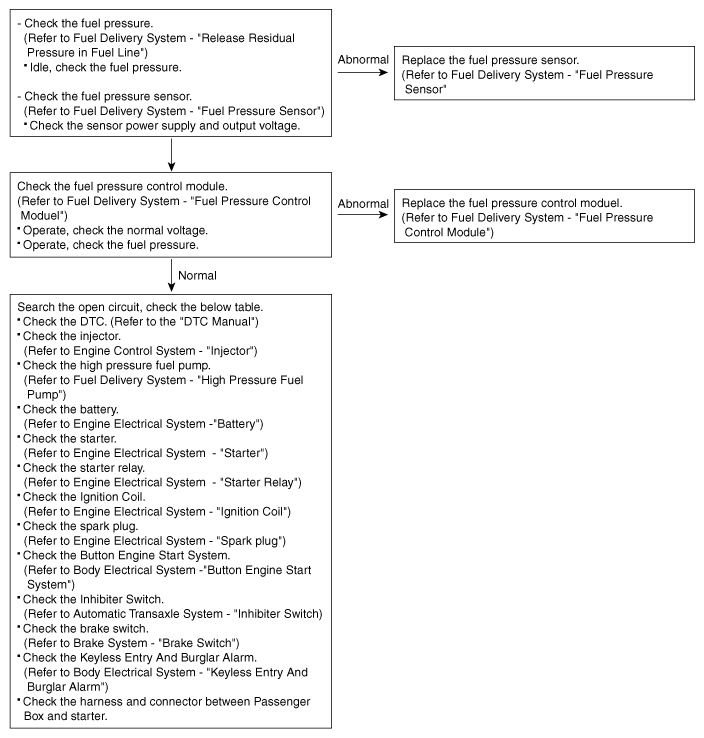

Fig 2: Fuel Delivery System Troubleshooting Chart (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

References for chart #2 above.

• Refer to FUEL PRESSURE SENSOR (FPS)
• Refer to FUEL PUMP CONTROL MODULE (FPCM)
