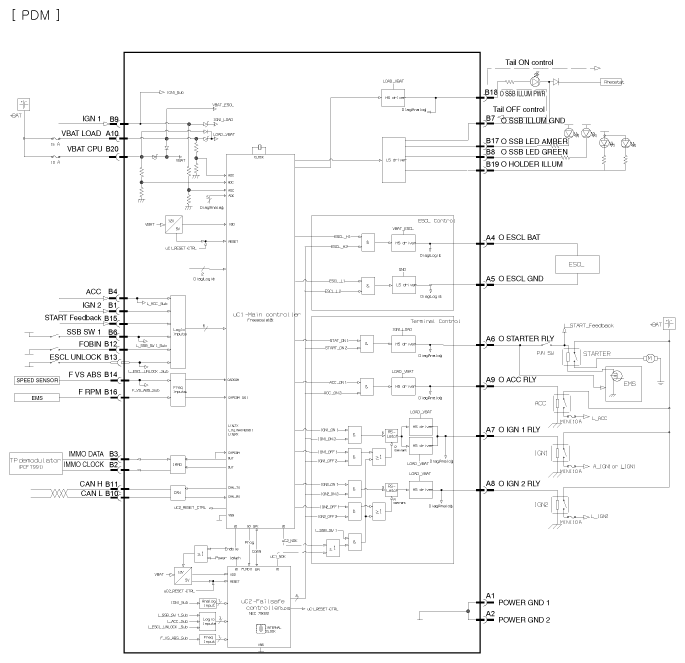

Home › Hyundai › 2016 › Genesis Coupe 3.8 Ultimate, Automatic Trans › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Power Distribution Module - PDM › Schematic Diagrams › System Circuit Diagram
