Components and Components Location: Component

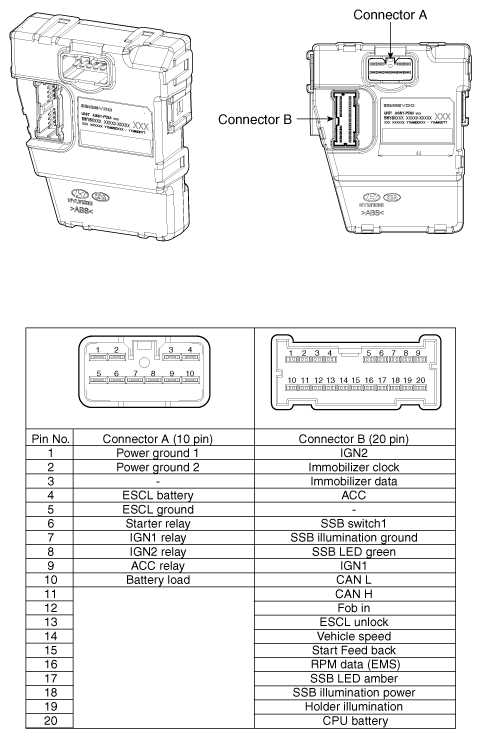

Fig 1: Power Distribution Module Components And Terminals
G10490579Courtesy of HYUNDAI MOTOR AMERICA
