Components and Components Location: Component

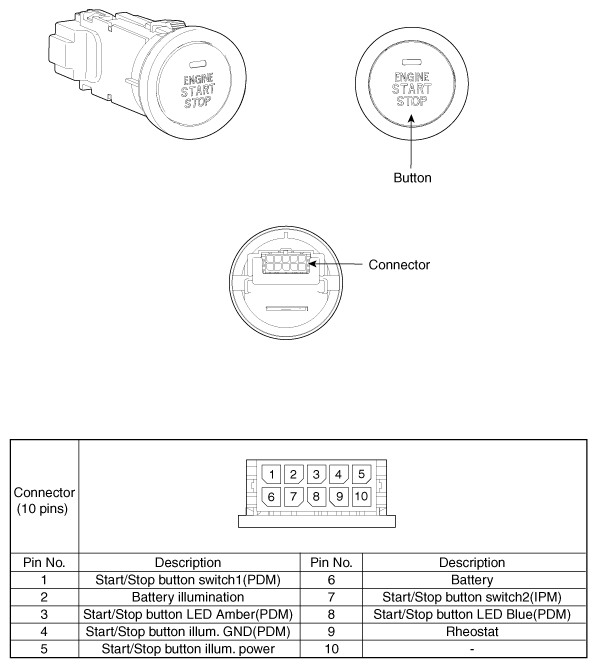

Fig 1: Start Stop Button Components And Terminals
G10490573Courtesy of HYUNDAI MOTOR AMERICA
