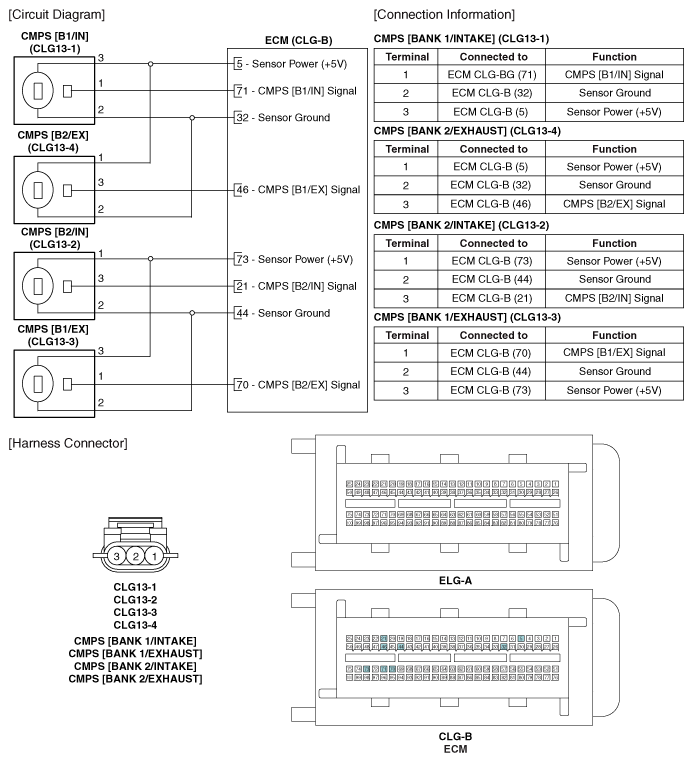

Home › Hyundai › 2016 › Genesis Coupe 3.8, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Camshaft Position Sensor - CMPS › Schematic Diagrams › Circuit Diagram
