Engine Control System - 3.8L
›
Components and Components Location
›
Components Location
Components Location

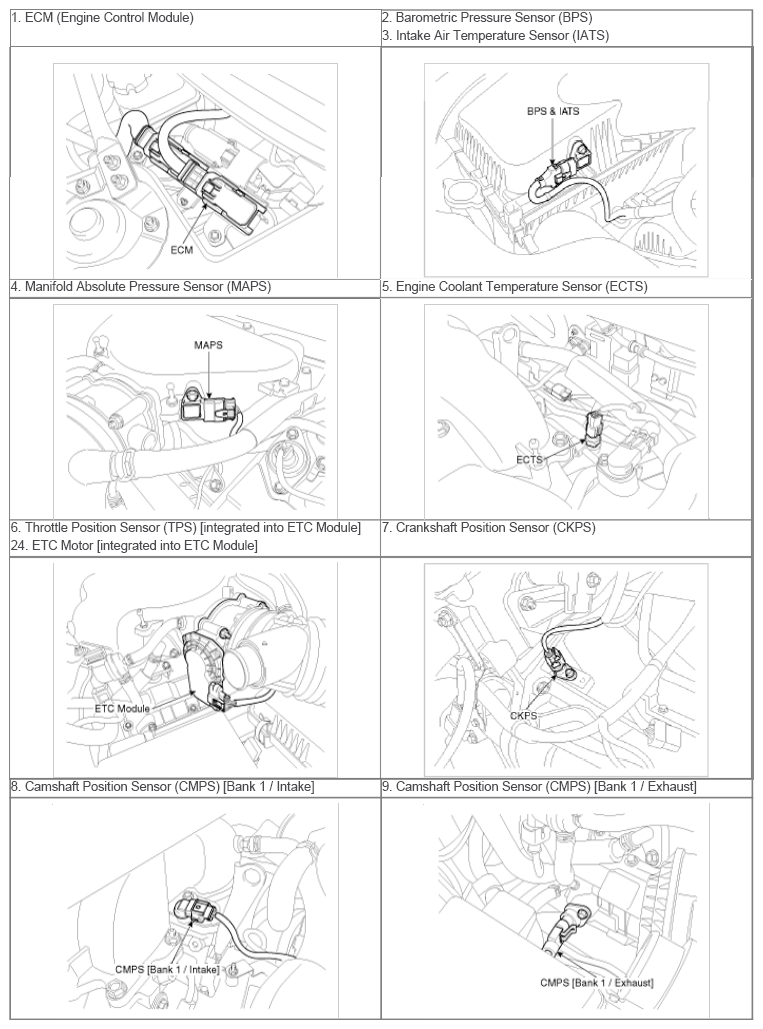

Fig 1: Engine Control System Components (1 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

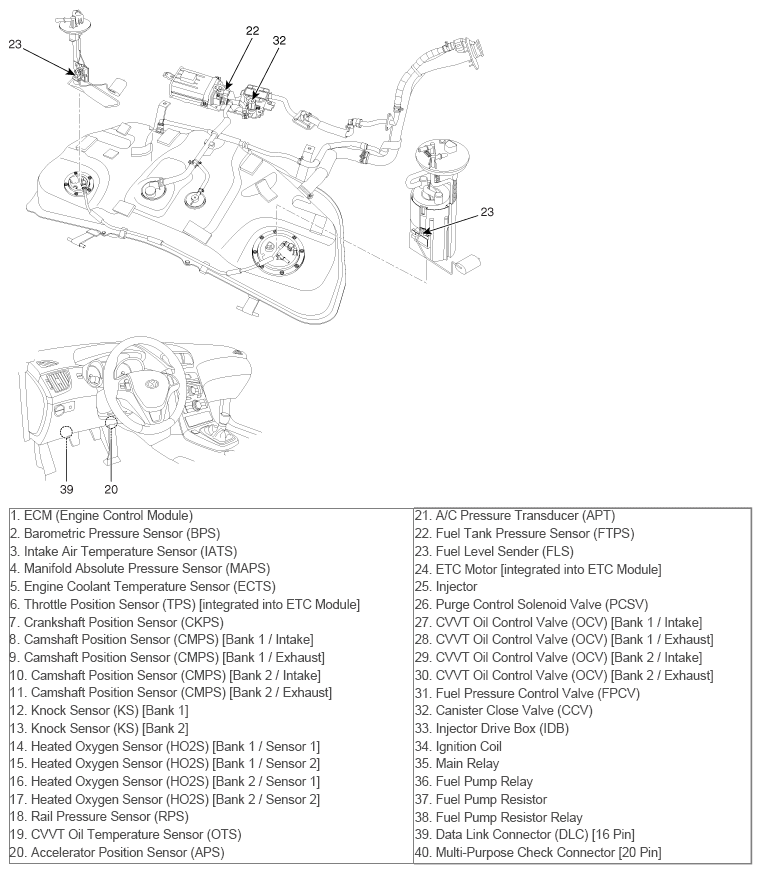

Fig 2: Engine Control System Components (2 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

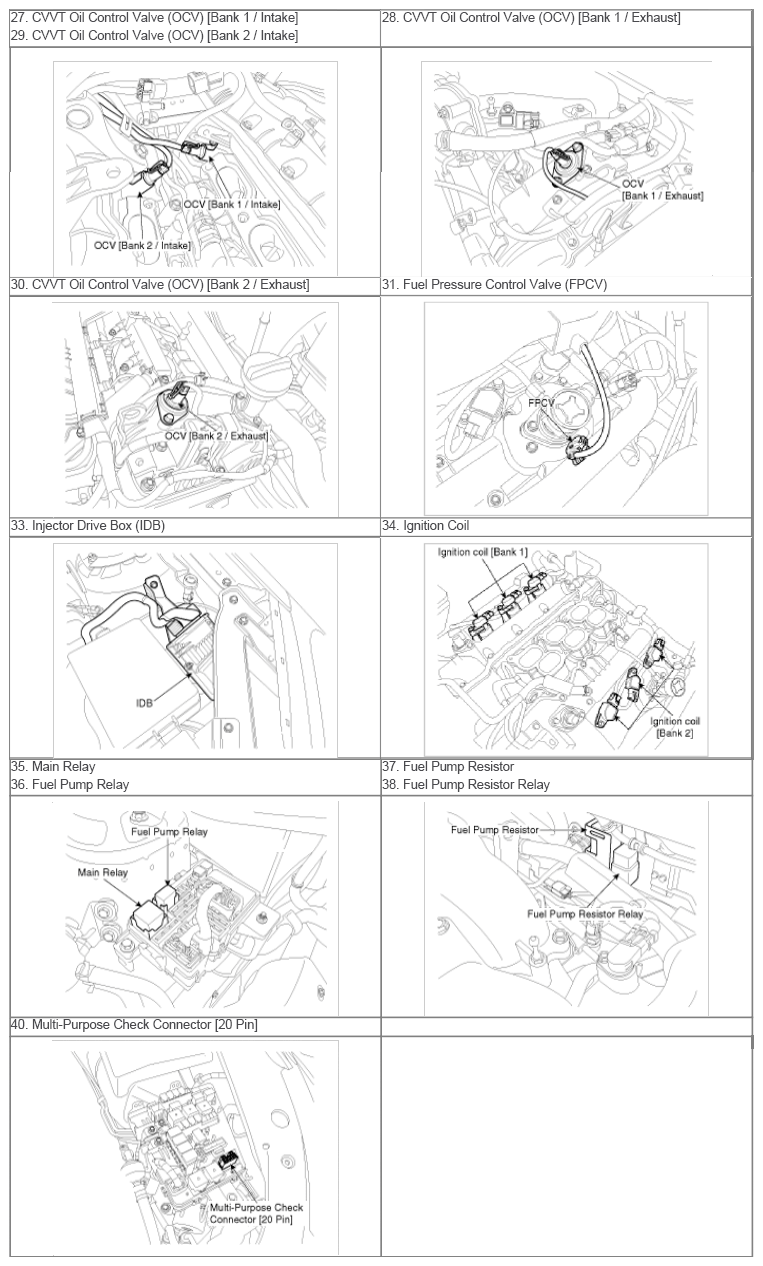

Fig 3: Engine Control System Components (3 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

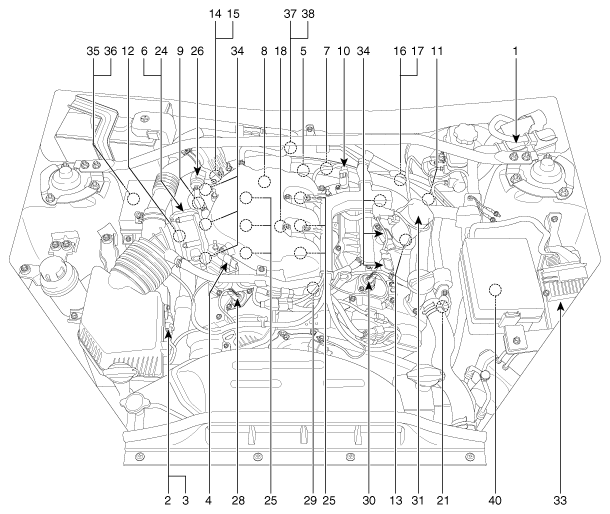

Fig 4: Engine Control System Components (4 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

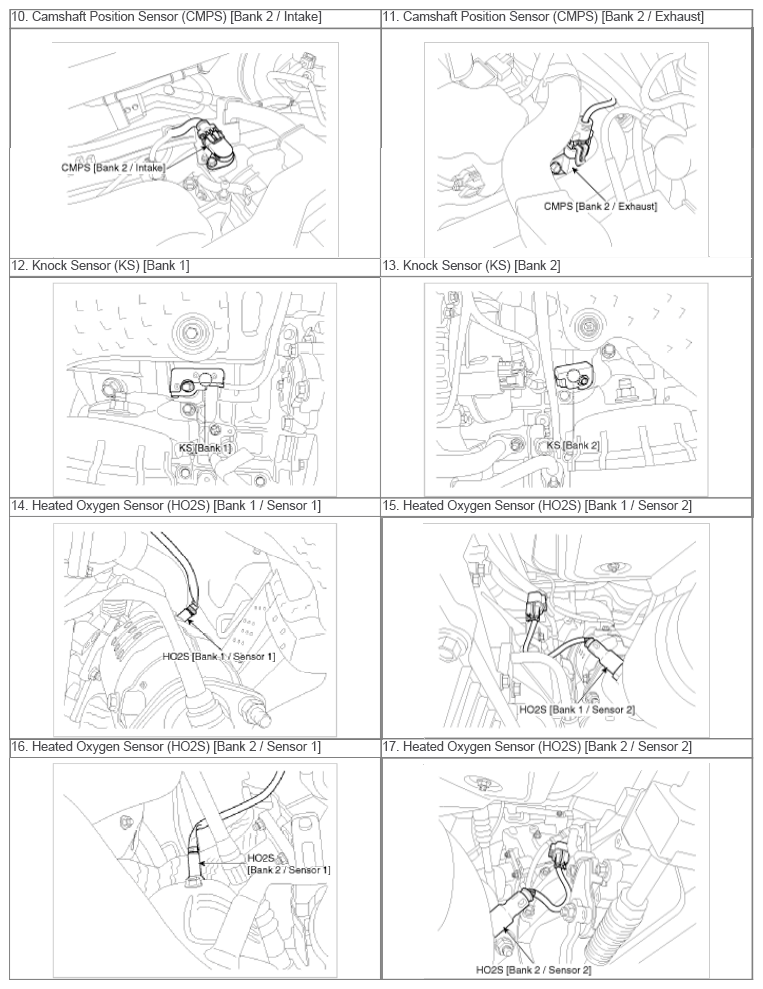

Fig 5: Engine Control System Components (5 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA

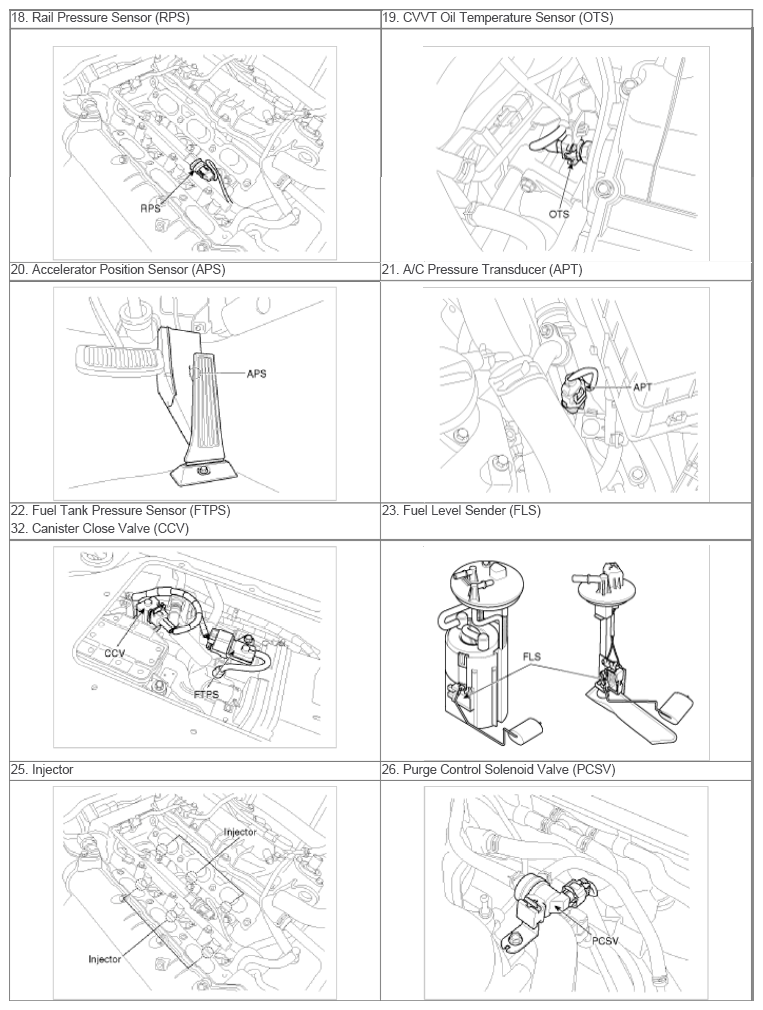

Fig 6: Engine Control System Components (6 Of 6)
Courtesy of HYUNDAI MOTOR AMERICA
