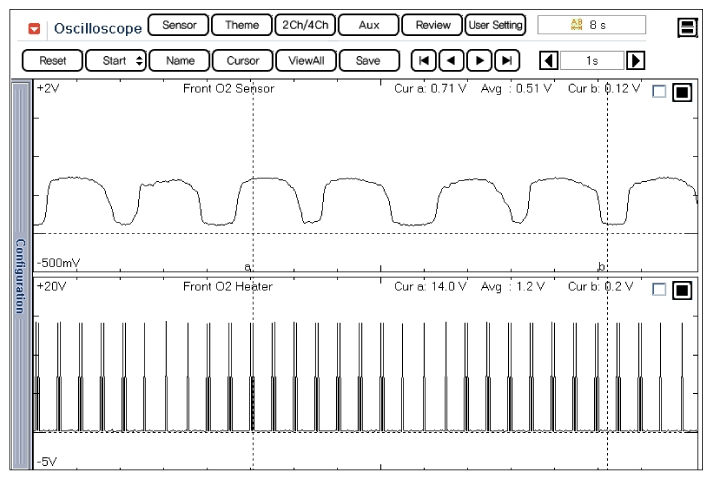

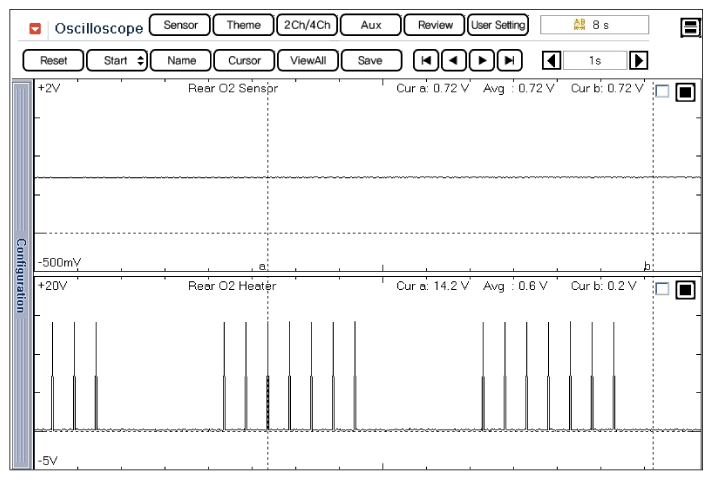

Home › Hyundai › 2016 › Genesis Coupe 3.8, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Heated Oxygen Sensor - HO2S › Troubleshooting › Signal Waveform
