Engine Control System - 3.8L
›
Injector Drive Box - IDB
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

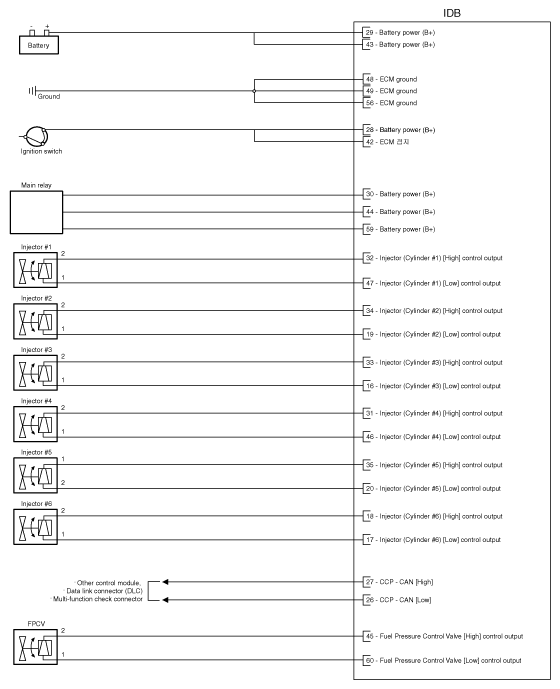

Fig 1: IBD Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: IBD Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
