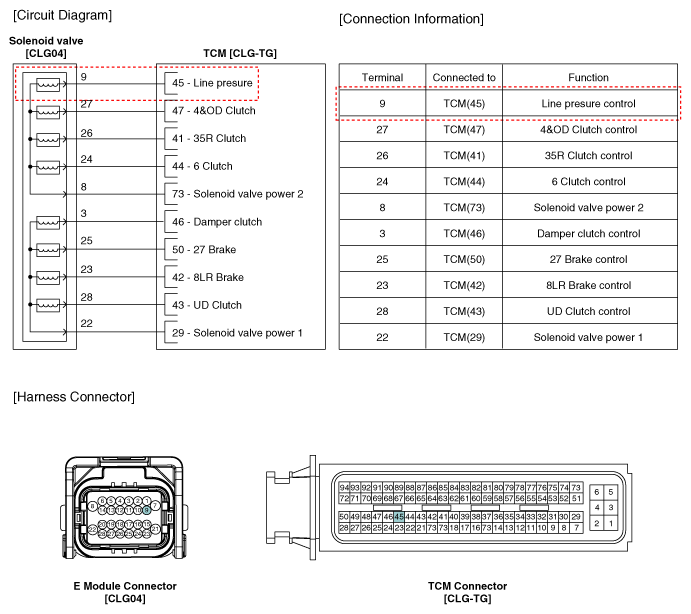

Home › Hyundai › 2016 › Genesis Coupe 3.8, Automatic Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System › Line Pressure Control Solenoid Vale › Schematic Diagrams › Circuit Diagram
