Block Diagram

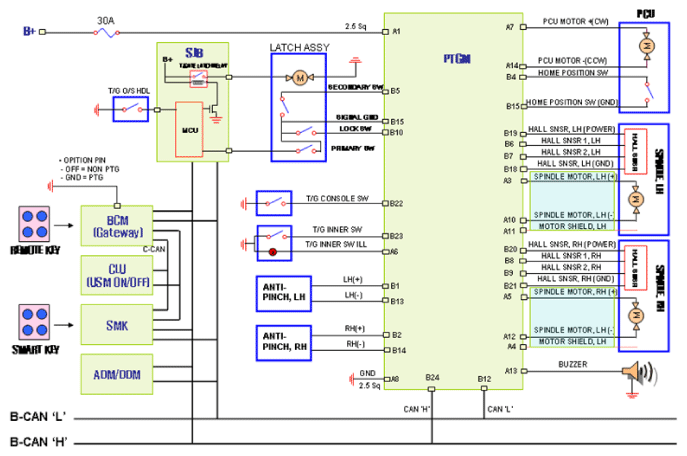

Fig 1: Power Liftgate Control Module Block Diagram
G10576950Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Power Liftgate Switch Terminal Continuity Chart
G10576951Courtesy of HYUNDAI MOTOR AMERICA
