Components and Components Location: Components

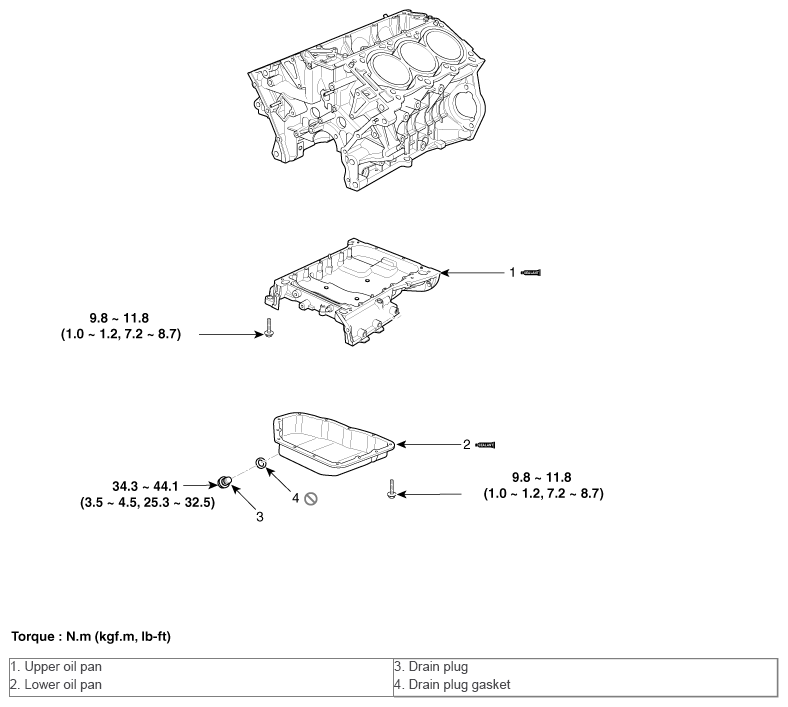

Fig 1: Oil Pan Components With Torque Specification
G10574630Courtesy of HYUNDAI MOTOR AMERICA
