Components and Components Location: Components

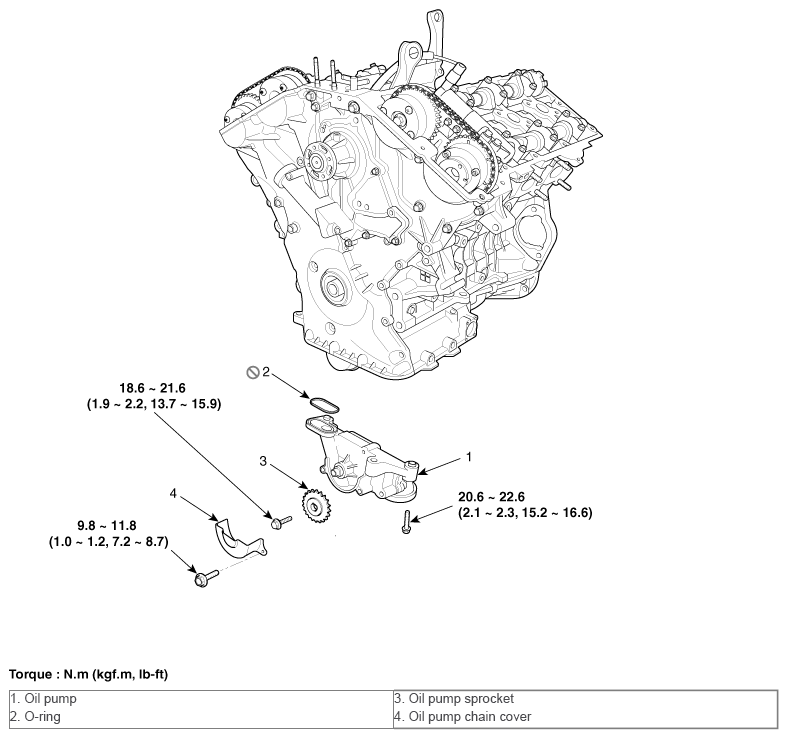

Fig 1: Oil Pump Components With Torque Specifications
G10574637Courtesy of HYUNDAI MOTOR AMERICA
