Components And Components Location: Components

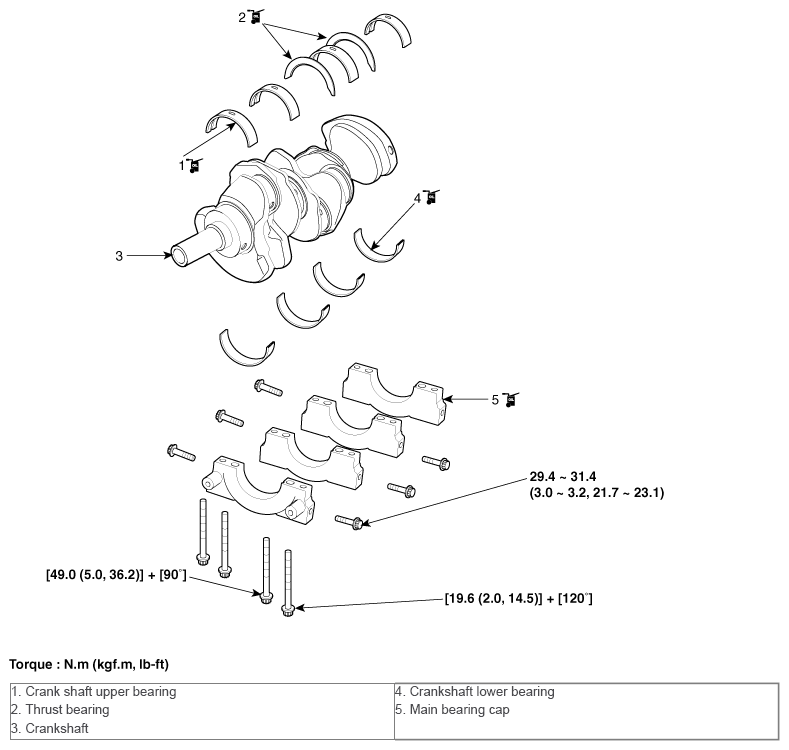

Fig 1: Crankshaft Components With Torques Specification
G10574538Courtesy of HYUNDAI MOTOR AMERICA
