Electric WGT Control Actuator
›
Components and Components Location
›
Components
Components and Components Location: Components

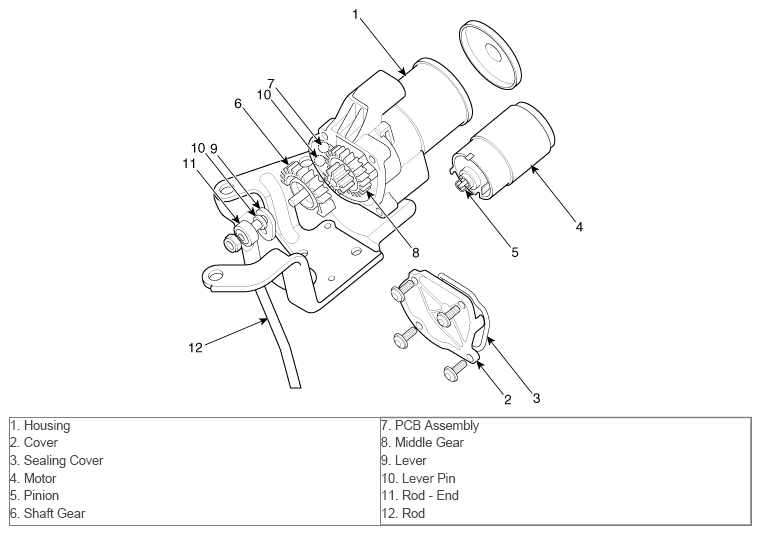

Fig 1: Identifying Electric WGT Control Actuator Related Components
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
