Circuit Diagram

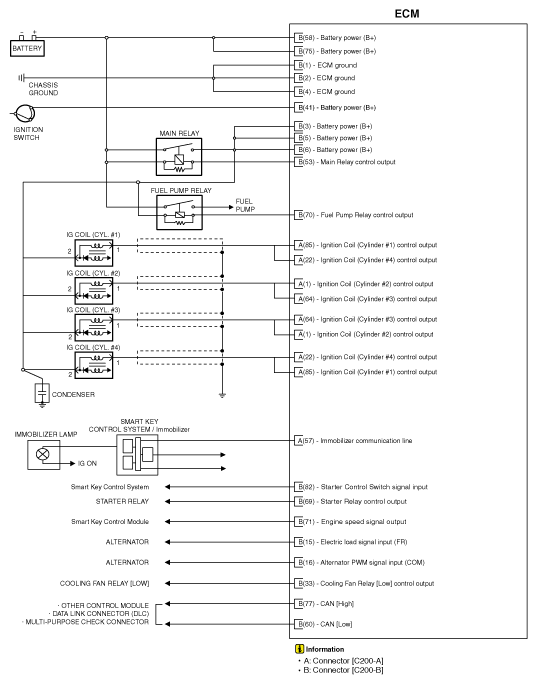

Fig 1: ECM Circuit Diagram (1 Of 4)
G10582728Courtesy of HYUNDAI MOTOR AMERICA

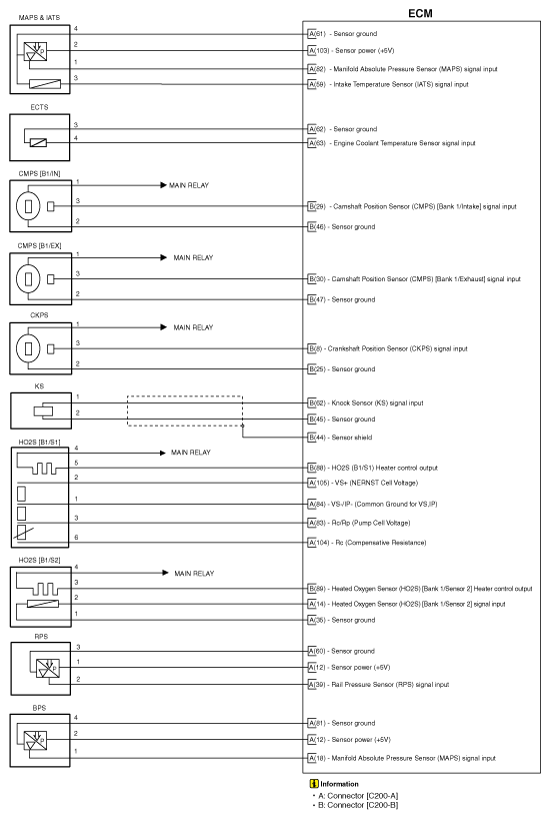

Fig 2: ECM Circuit Diagram (2 Of 4)
G10582729Courtesy of HYUNDAI MOTOR AMERICA

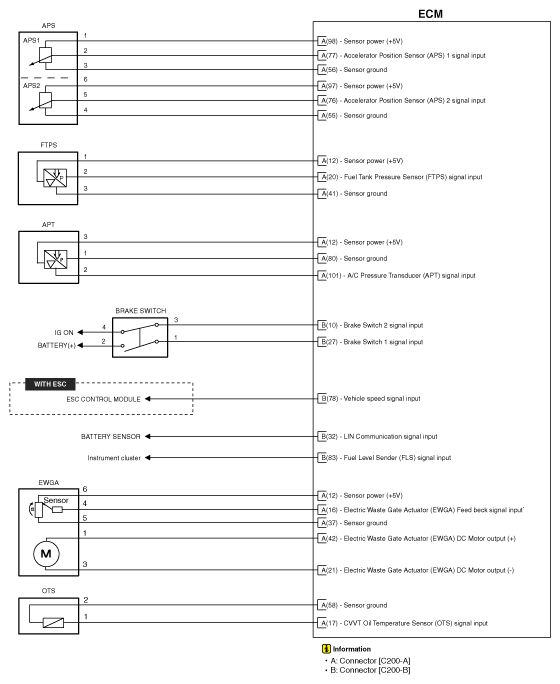

Fig 3: ECM Circuit Diagram (3 Of 4)
G10582730Courtesy of HYUNDAI MOTOR AMERICA

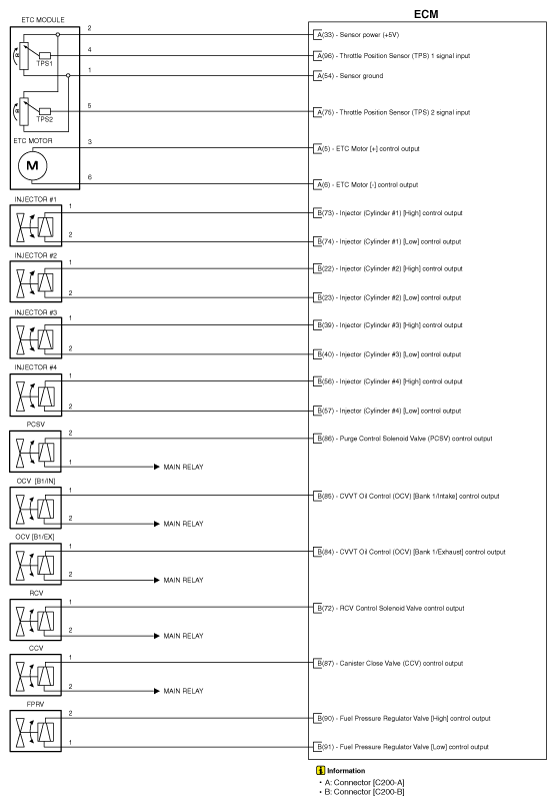

Fig 4: ECM Circuit Diagram (4 Of 4)
G10582731Courtesy of HYUNDAI MOTOR AMERICA
