Engine Control System - 2.0L
›
Engine Control System
›
Components and Components Location
›
Components Location
Components Location

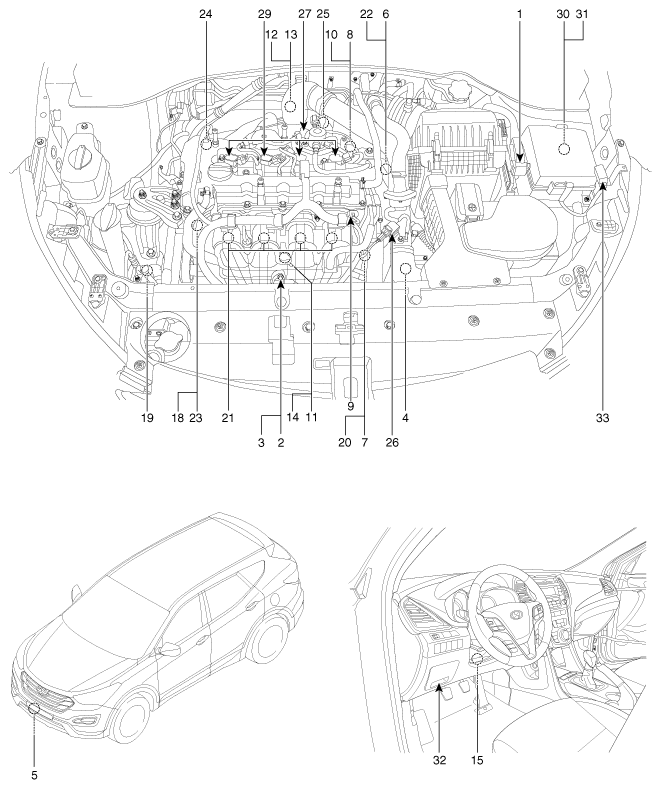

Fig 1: Identifying Engine Control System Related Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

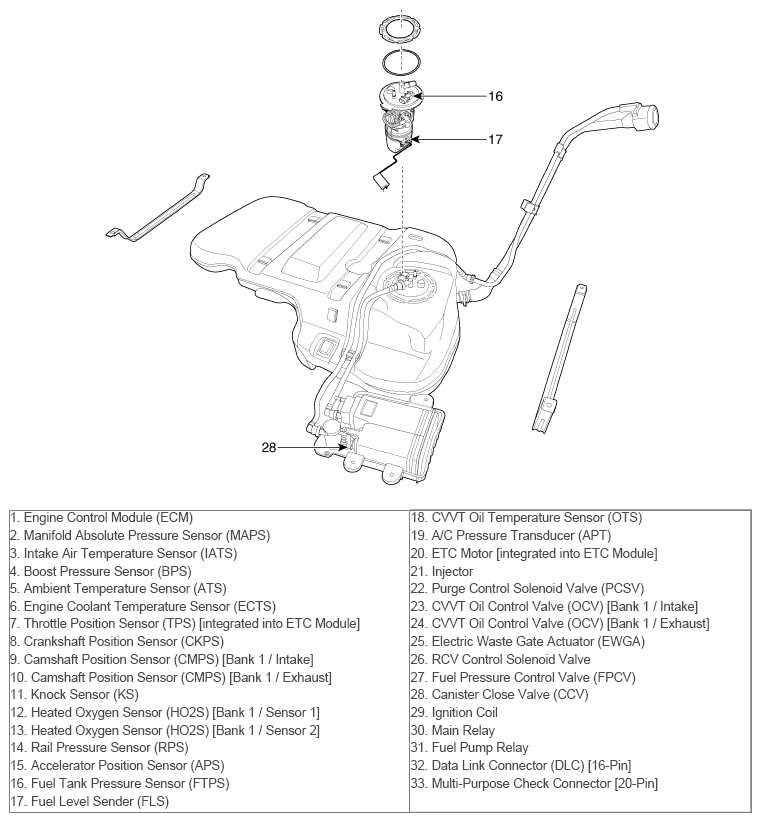

Fig 2: Identifying Engine Control System Related Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

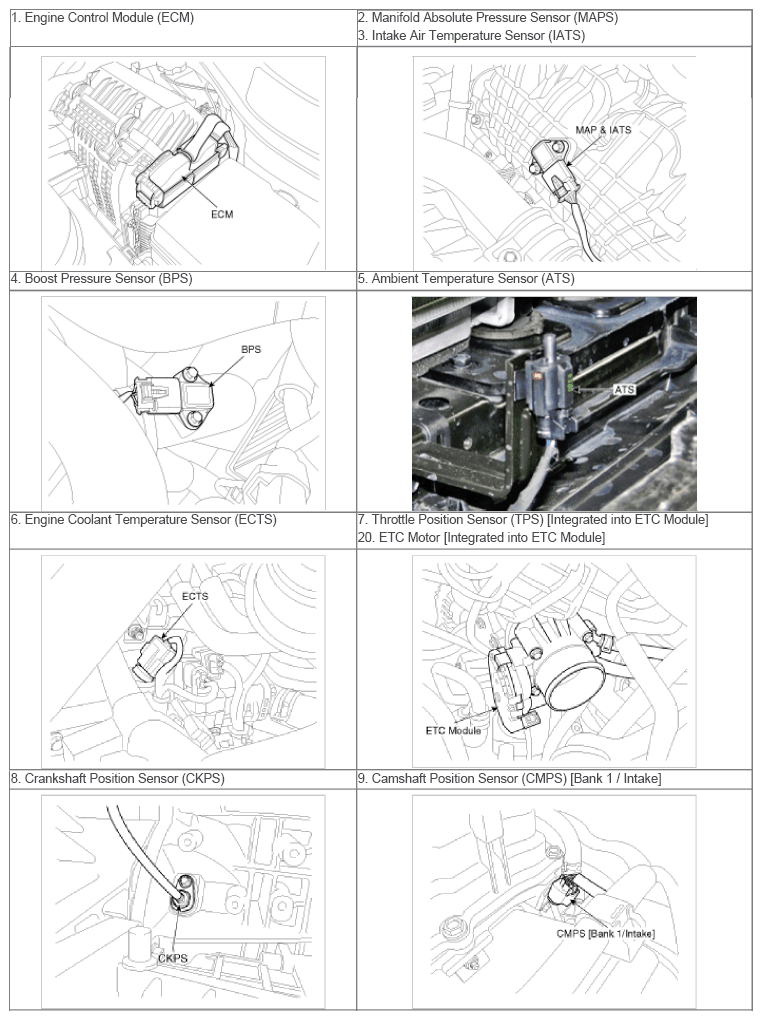

Fig 3: Identifying Engine Control System Related Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

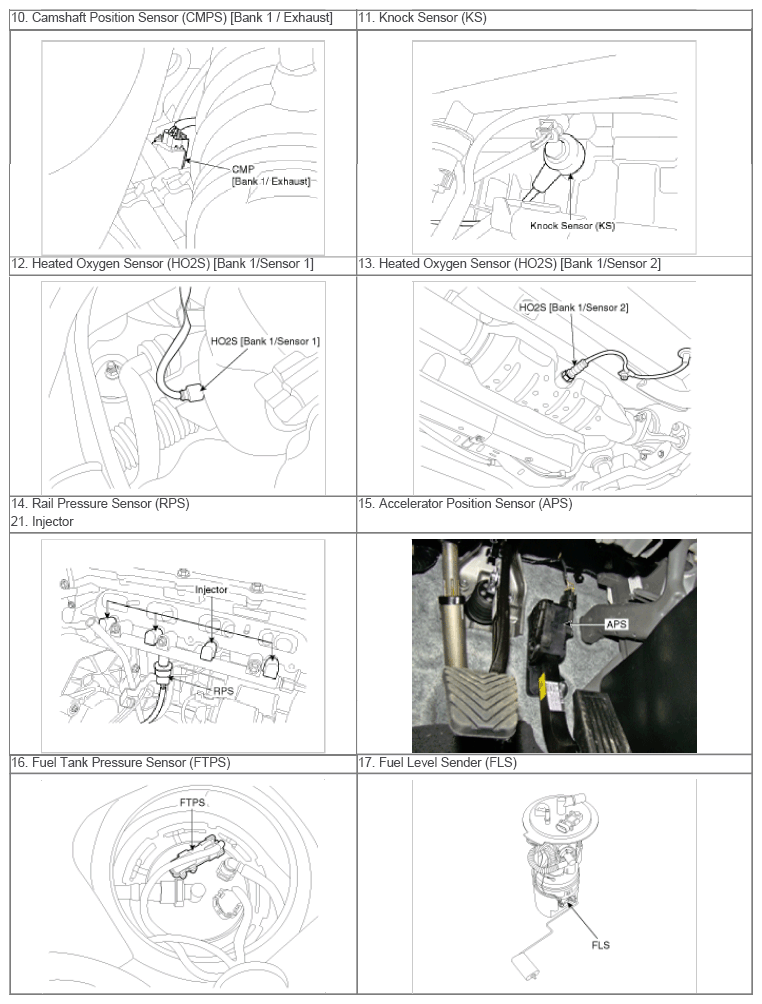

Fig 4: Identifying Engine Control System Related Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

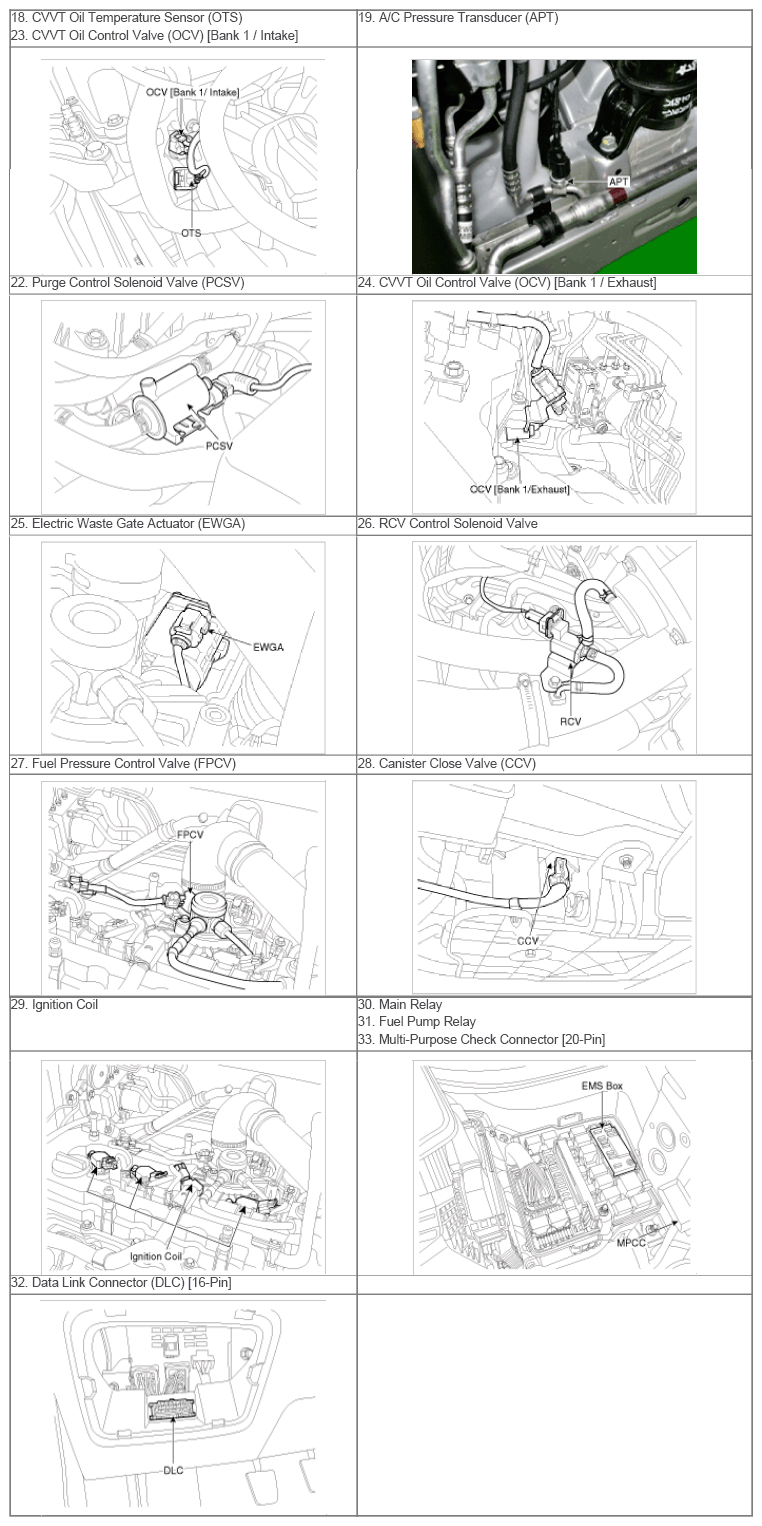

Fig 5: Identifying Engine Control System Related Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
