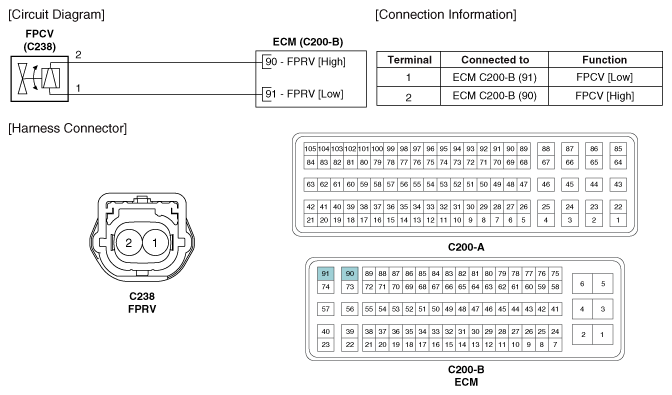

Home › Hyundai › 2016 › Santa Fe Sport 2.0T, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Fuel Pressure Control Valve › Schematic Diagrams › Circuit Diagram
