Component Location (1)

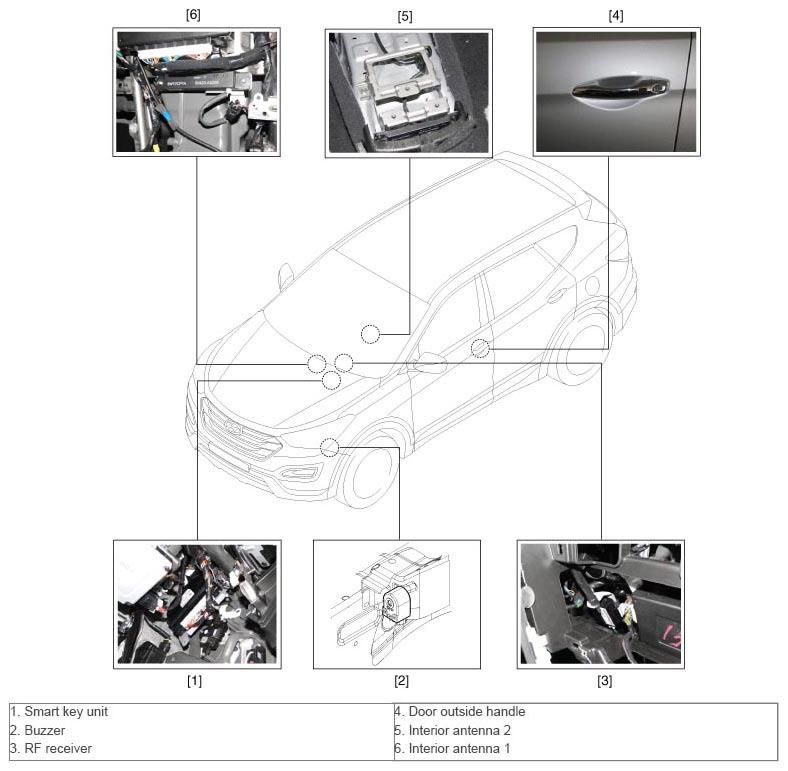

Fig 1: Smart Key Unit And Buzzer Components Location
G10584430Courtesy of HYUNDAI MOTOR AMERICA

Component Location (2)

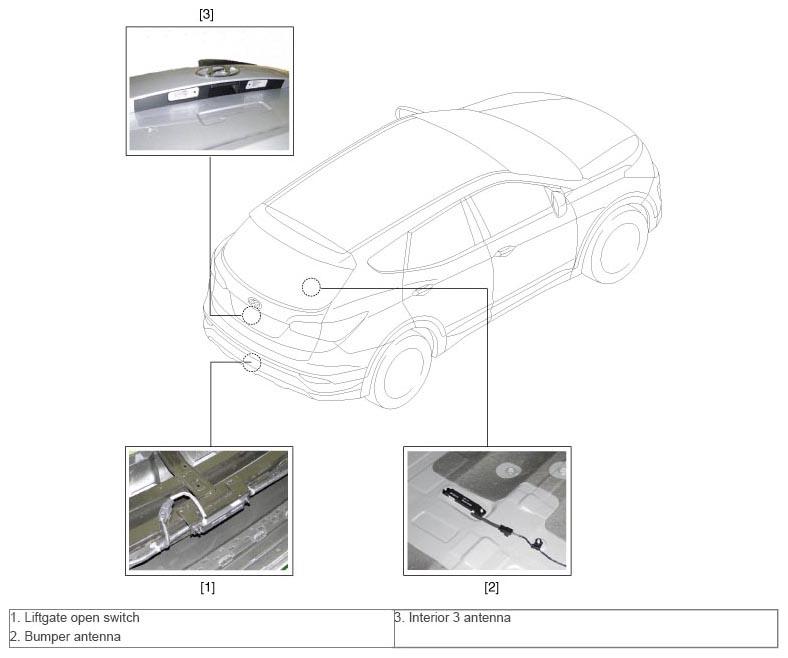

Fig 2: Liftgate Open Switch And Bumper Antenna Components Location
G10584431Courtesy of HYUNDAI MOTOR AMERICA
