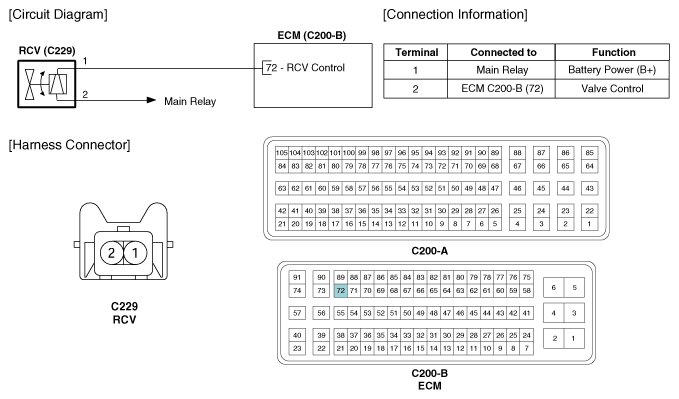

Home › Hyundai › 2016 › Santa Fe Sport 2.0T, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › RCV Control Solenoid Valve › Schematic Diagrams › Circuit Diagram
