FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "FOB KEY STATUS INFO".

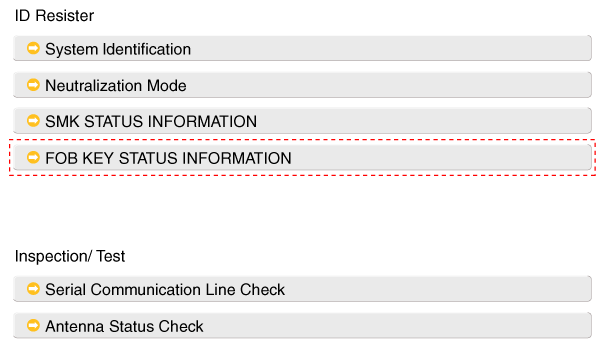

Fig 1: Screen Display - ID Register

Courtesy of HYUNDAI MOTOR AMERICA

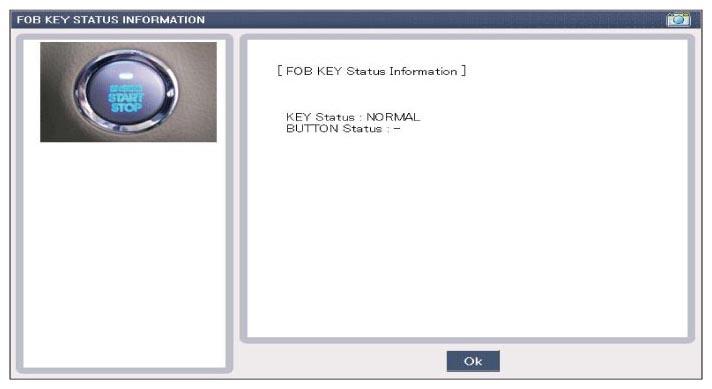

Fig 2: Screen Display - Fob Key Status Information

Courtesy of HYUNDAI MOTOR AMERICA
