Components And Components Location: Components

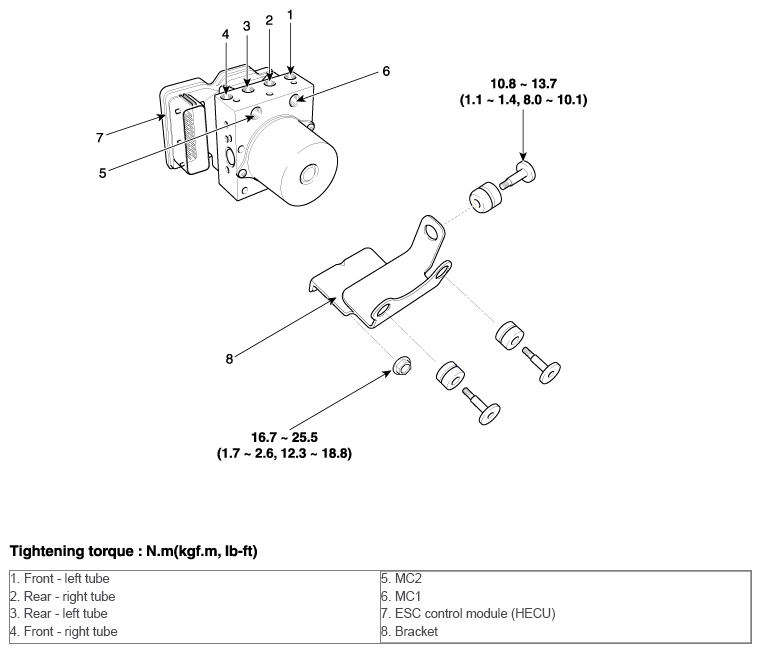

Fig 1: ESC Control Module Replacement Components With Torque Specifications
G10583707Courtesy of HYUNDAI MOTOR AMERICA
