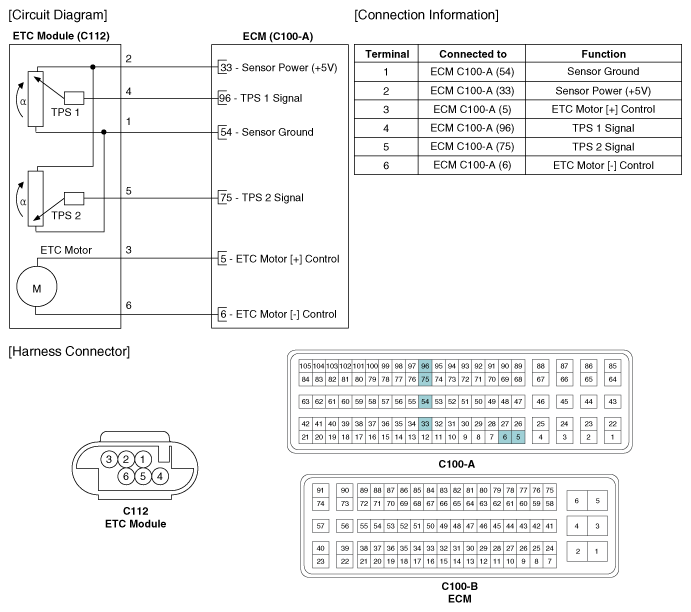

Home › Hyundai › 2016 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › ETC (Electronic Throttle Control) System › Schematic Diagrams › Circuit Diagram
