Components and Components Location: Components

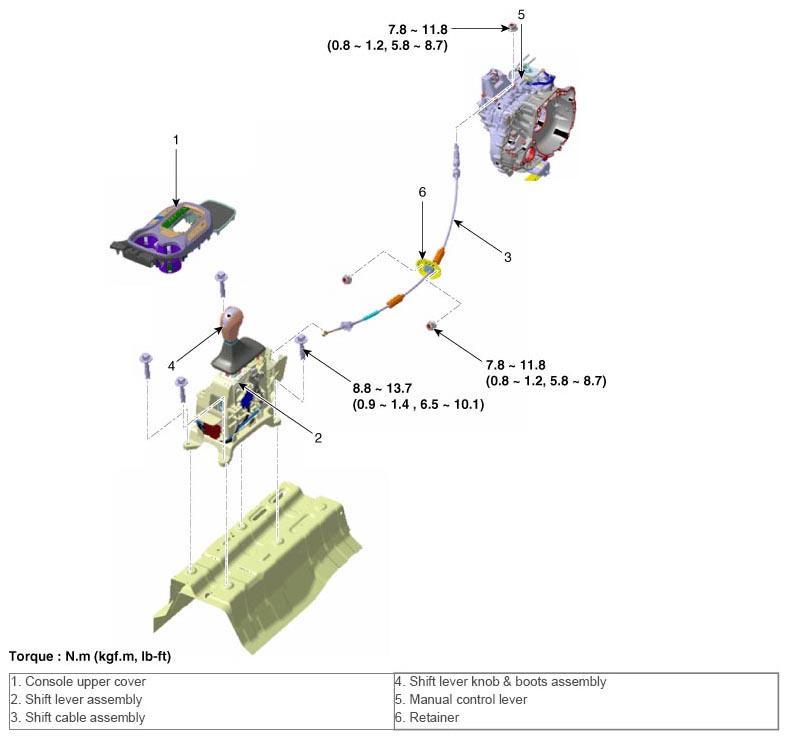

Fig 1: Shift Cable Replacement Components Location With Torque Specifications
G10583075Courtesy of HYUNDAI MOTOR AMERICA
